Excellent running lathe, can be seen under power. Videos available. Free Loading.

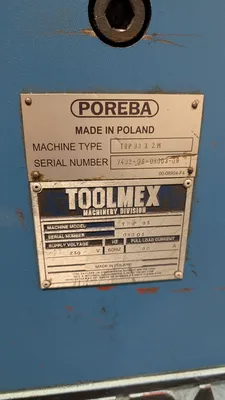

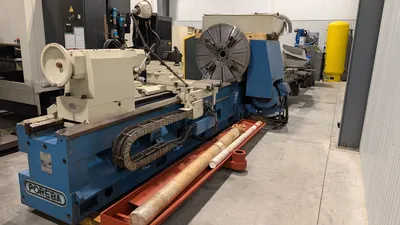

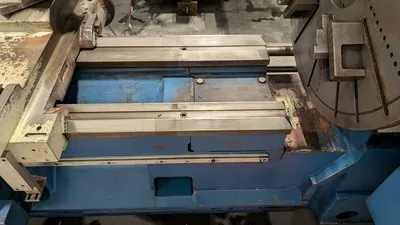

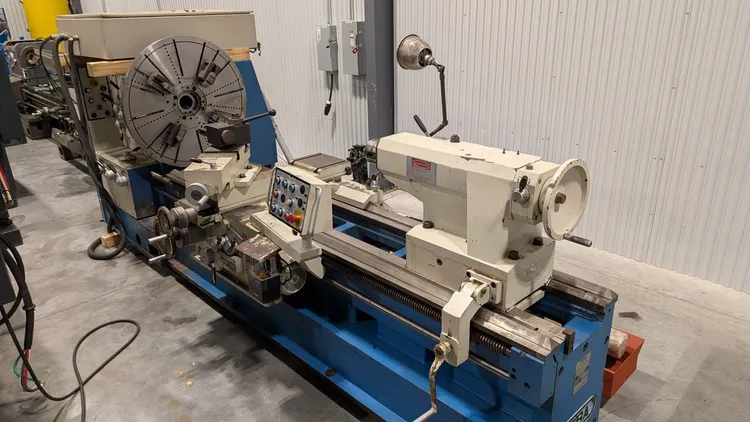

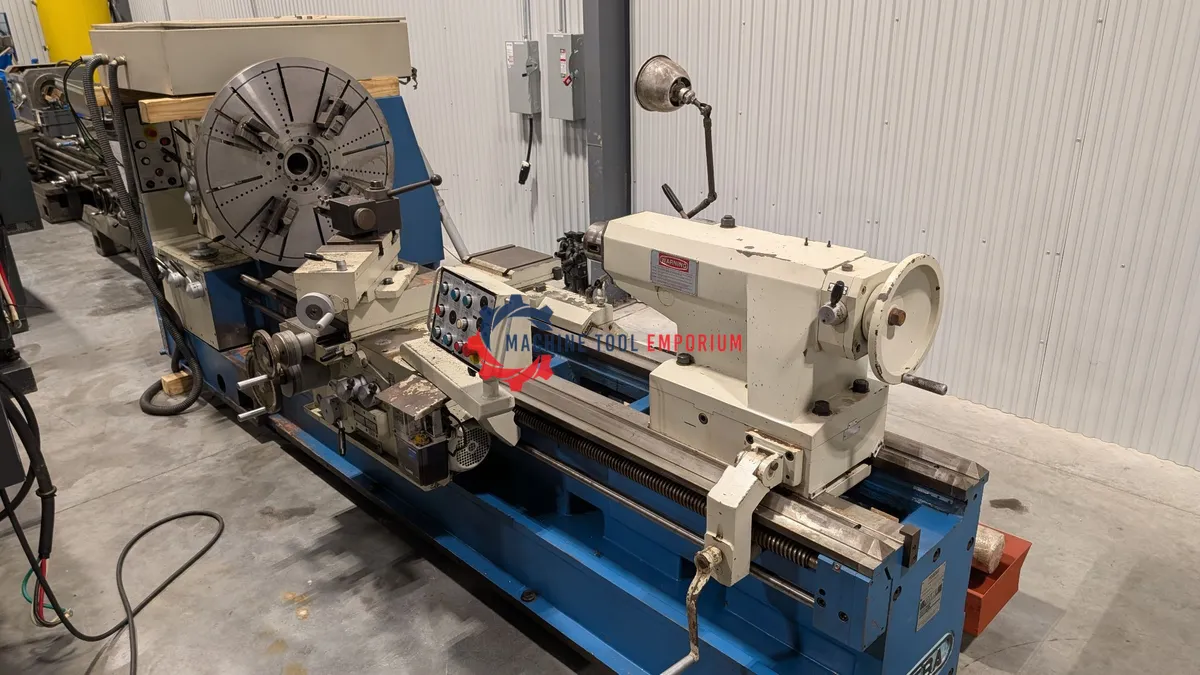

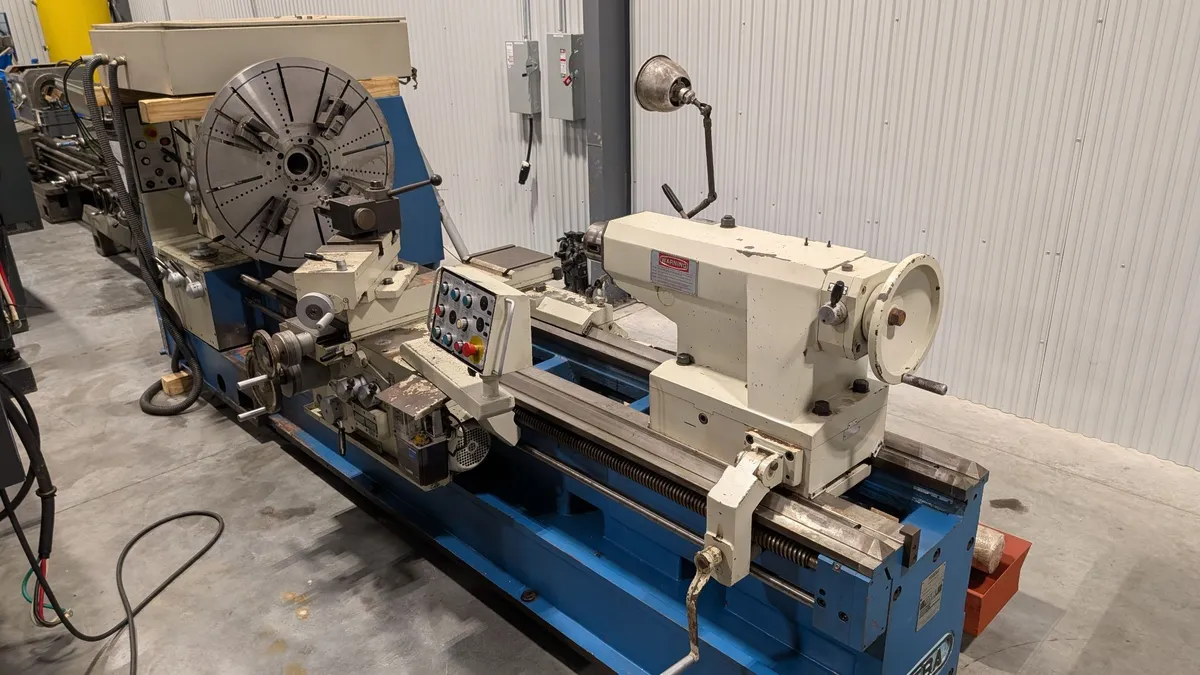

Poreba TRP 93/2M 36" x 78.75" Gap Bed Engine Lathe.
Newall DRO
Swing Over Bed 36-1/2"
Swing Over Cross Slide 24-3/4"

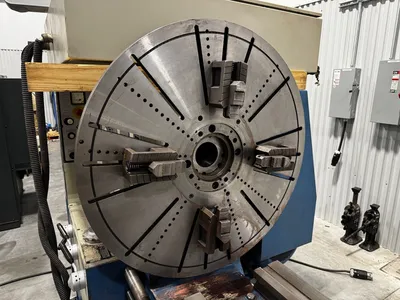

Spindle Nose Camlock A1-12

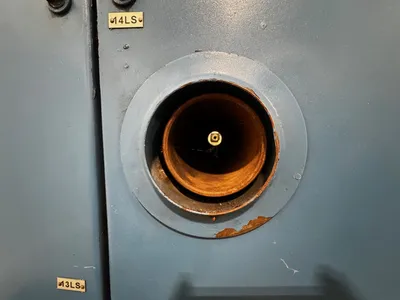

Hole Through Spindle 3.75"
Distance Between Centers 78.75"
Spindle Speed Range (21) 1 - 900 Rpm
Longitudinal Feed Range (70) .0043 - .249 Ipr
Cross Feed Range (70) .0021 - .249 Ipr
English Threading Range (56) .5 - 30 Tpi
Metric Threading Range (62) 1 - 60 Mm Pitch
Width Of Bed 23"

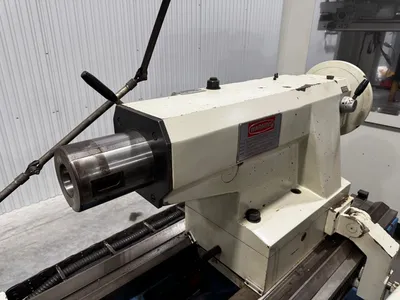

Tailstock Spindle Diameter 5-1/8"
Tailstock Spindle Taper #6mt
Tailstock Spindle Travel 11-3/4"
Drive Motor 23 / 36 Hp (2-Speed)
Current electrics 230/3/60
Approximate Floor Space 74" X 180"
Approximate Weight 20,500 Lbs.
