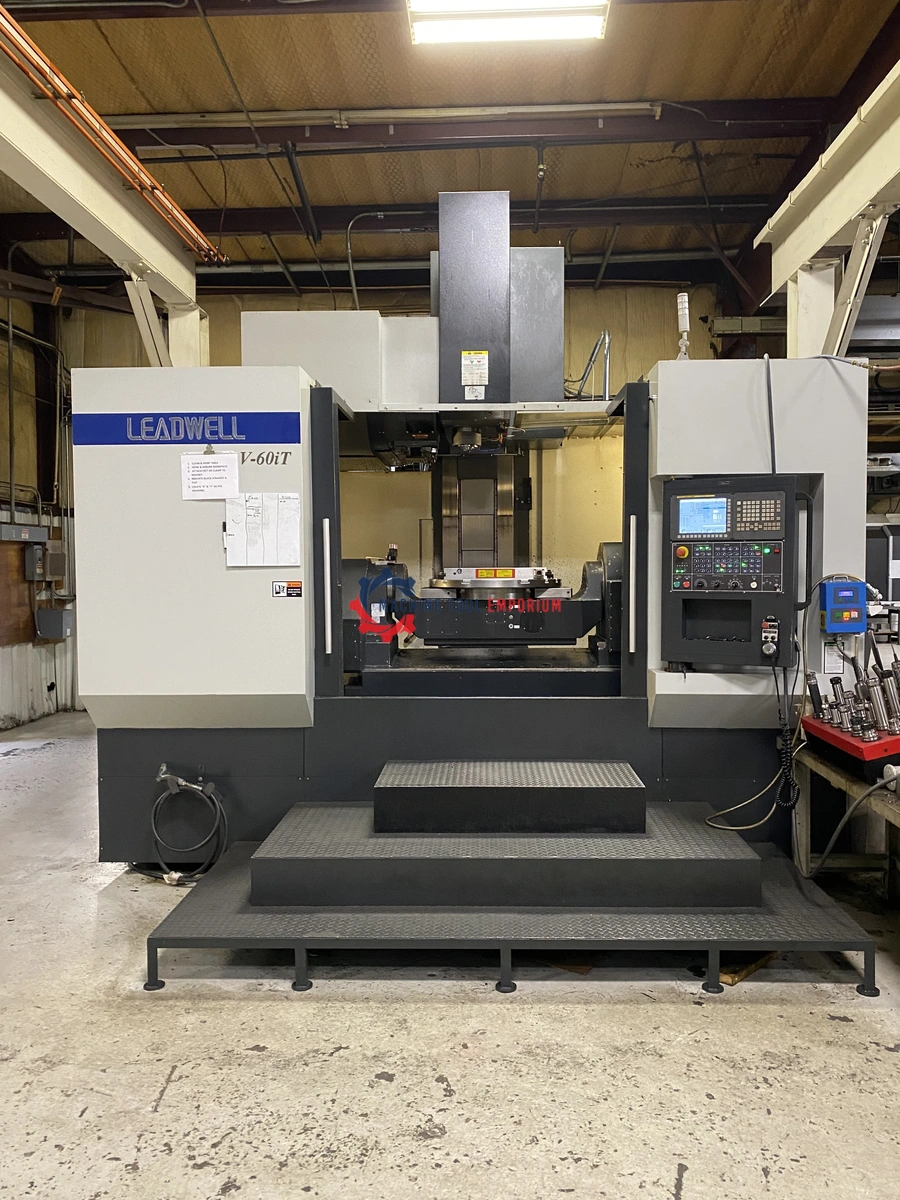

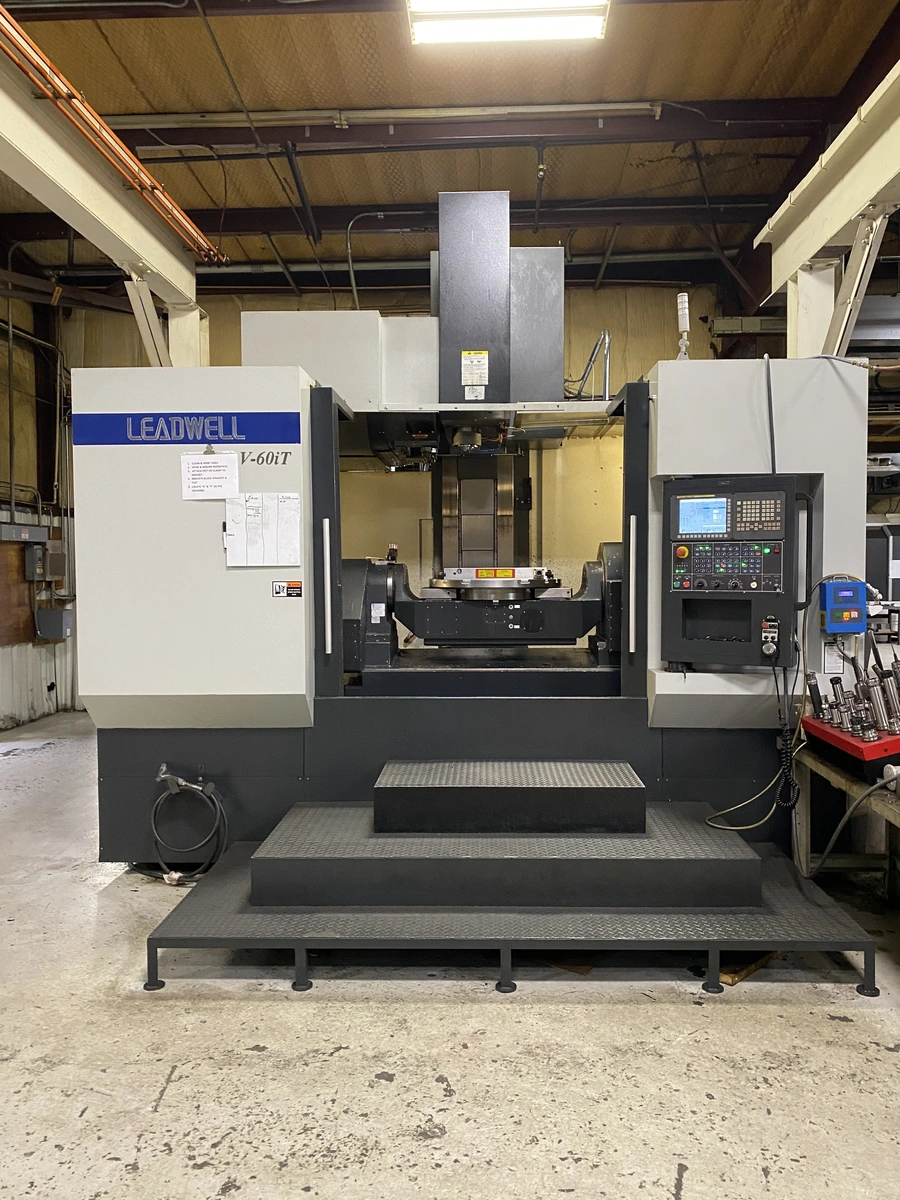

2018 Leadwell V60IT 5 Axis Vertical Machining Center

SPECIFICATIONS

TRAVELS

X Axis 50”

Y Axis 40”

Z Axis 30.8”

Rotary Table top to spindle nose 34.7”

Spindle Center to Column 39.4”

C Axis (Rotating Axis) (degrees) 360°

A Axis (Tilting Axis) (degrees) +120° - - 30° (150° total)

TILTING ROTARY TABLE

Rotary Table Size (Diameter) 24.8” (630mm)

Max. Part Swing in Diameter at 0° (Tilting Axis “A”) 39”

Max. Part Swing in Diameter at 90° (Tilting Axis “A”) 32”

Max Part Height at 90° (degrees) (Tilting Axis “A”) 24.2”

Table Height from Floor 58”

Table Top Surface Precision Ground

Rotary Axis Brake Torque @500 psi (35 kg/cm2) –

(Hydraulic) 1085 lbf*ft (150 kgf*m)

Tilting Axis Brake Torque @500 psi (35 kg/cm2) –

(Hydraulic) 1447 lbf*ft (200 kgf*m)

Table Max. Load at 0°~ 45° Deg. At Tilting Position 1102 lbs.-peak (500 kg)

Table Max. Load at 60°~ 90° Deg. At Tilting Position 772 lbs.-peak (350 kg)

Table Tee Slots .. .551” (14mm)

SPINDLE

Spindle Nose (Dual Contact) BT-40 or CAT-40

Spindle Motor Power 35-47 HP (30min-peak)

164ft/lbs@1500 rpm

Spindle Speed 15,000 rpm

Spindle Motor Type FANUC α22i

Tool Clamping Force 1,870 lbs.

Spindle Bearings 6 Ceramic Angular Contact

(FAG or NSK)

24.8” dia Integrated Trunnion Table 47 HP Fanuc A/C Spindle Motor – peak rating

15,000 RPM Ceramic Bearing Spindle

1181 IPM Rapid X, Y & 787 IPM Rapid Z

Linears Ways X, Y axes & Box Ways Z-Axis

Dual Contact Spindle Taper – BT-40 or CAT-40

Coolant Thru the Spindle Preparation

40 Tools Arm Style ATC

Dual Screw Type Chip Augers and Chip Type Chip Conveyor

Spindle Air Blow to Clean Tool

Flood Coolant Unit & Spindle Coolant Ring

Base Wash

Spindle Oil Chiller

Alarm & Work Light

Full Guarding

Heat Exchanger for Cooling Inside Electrical Cabinet

Machine is Laser Calibrated for full travel accura

15,000 Ceramic Spindle
Fanuc 0iMF 200 Blocks High Speed Package
(200 Blocks, AICC II, Jerk Control & Smooth Tolerance Control,
Machining Quality Level & Machining Condition)
Renishaw NC4 F230-170 Non-Contact Tool Setter
Programmable Air Blast through coolant nozzle
Wash Down Gun
290 PSI CTS
Air Thru Spindle/Tool (via M11)
440 Volt Primary, 220 Volt Secondary Transformer
Renishaw MP-60 Probe w/CT 40 Shank, Including Inspection Plus
