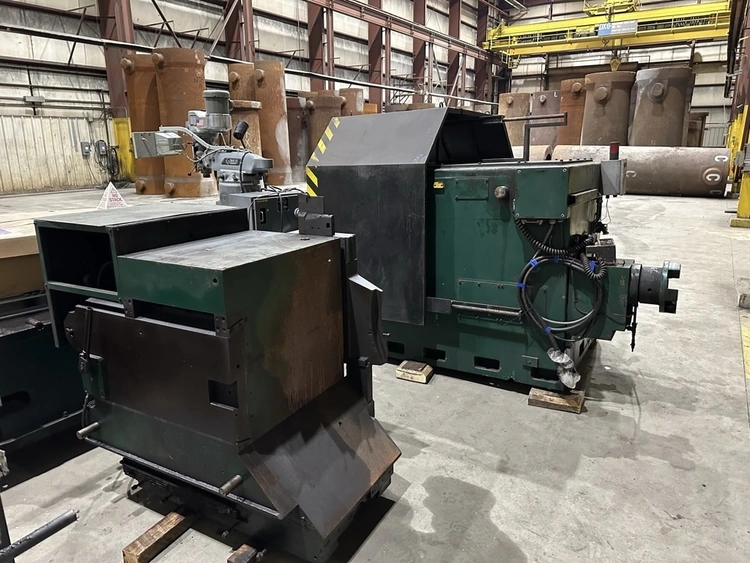

2006 HERKULES CNC ROLL Lathe 61" x 275"

SPECIFICATIONS:
MAXIMUM TURNING DIAMETER 61.02"
MINIMUM TURNING DIAMETER 0
DISTANCE BETWEEN CENTERS, MAXIMUM 275.59"
DISTANCE BETWEEN CENTERS, MINIMUM 39.37"
CARRIAGE STROKE, Z-AXIS 275.59"
TURNING SADDLE STROKE, X-AXIS, MAX. 21.65"
PLUNGE CUT DEPTH AT ROLL DIAM. 61" 12"
MAX. WORKPIECE WEIGHT, UNSUPPORTED 120,000 LBS
HEADSTOCK:
SPINDLE SPEEDS, RANGE ONE 1-45 RPM
SPINDLE SPEEDS, RANGE TWO 4-192 RPM
FACEPLATE CLAMPING DIAMETER 5.9"-29.52"
POWER DRIVE MOTOR, MAXIMUM 260 HP
GEAR LUBRICATION SETTING 1....1/MIN
SADDLE:
X-AXIS CROSS FEED 0.039-236.22 IPM
X-AXIS RAPID MOTION 236.22 IPM
Z-AXIS LONGITUDINAL FEED 0.039-236.22 IPM
Z-AXIS RAPID MOTION 236.22 IPM
TOOL SLIDE:
NUMBER OF TOOL SLIDES 1
NUMBER OF POSITIONS 3
CUTTING FORCE, MAXIMUM 120,000 N
TURRET HEAD:
NUMBER OF TOOL POSITIONS 4
TOOL TYPE SPECIAL CASSETTES
CUTTING FORCE, MAXIMUM 100,000 N
TAILSTOCK:
CENTER PRESSURE, MAXIMUM 30,000 N
CENTER SLEEVE ADJUSTMENT, MAXIMUM 0.3937"
EQUIPPED WITH:
FANUC 32-A CNC CONTROLS
2-POWER ROLL SUPPORTS
4-JAW CHUCK
STEEL TELESCOPING WAY COVERS
250 HP BALDOR DRIVE MOTOR
NOTES:
TAILSTOCK RECENTLY REBUILT BY MACHINE TOOL RESEARCH TO ACCOMMODATE ADDITIONAL CUTTING FORCE
2-SOFT LOADER FOR EASE OF ROLL LOADING
