| Tonnage | 66 T | 59.874 t |
| Angle (L1) | 4.75" | 120.65 mm |
| Angle (L2) | 4.75" | 120.65 mm |
| Throat | 8.625" | 219.07 mm |

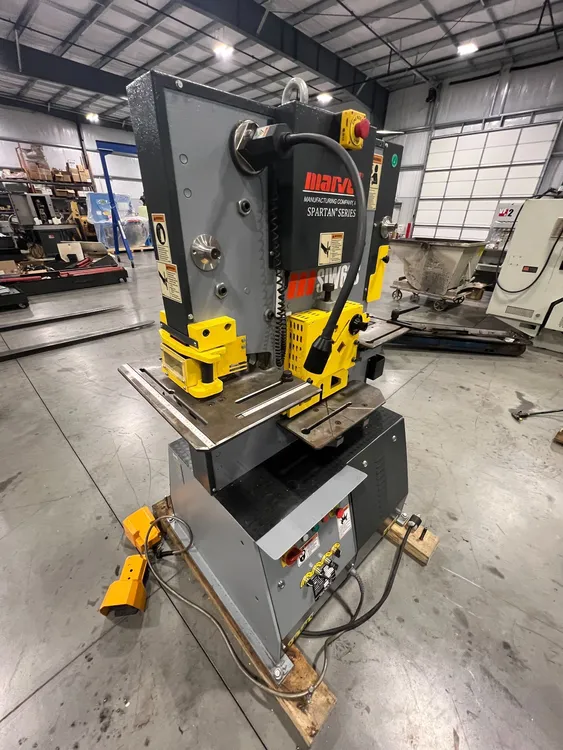

Model MSIW66S
Work Stations 5
Punching Punching Pressure 66 Tons
Standard Tooling 1-1/4″ x 5/8″
*Oversize Tooling N/A
Throat Depth 8-5/8″
Stroke Length 2-1/8″
Cycle/Min. (3/4″) 25
Work Height 41-1/4″
Flat Bar Shearing Capacity 12″ x 9/16″
Width & Thickness 8″ x 3/4″
Blade Length 12-7/16″
Angle Flange Trim 3″ x 3/8″
Work Height 37-9/16″
Angle Shear 90° 4″ x 4″ x 7/16″
45° 3″ x 5/16″
Work Height 45-1/2″
Bar Shearing Round Bar 1-1/2″
Square Bar 1-3/8″ x 1-3/8″
**Channel Shear 3″
**H Beams 3″
**T Beams 3″ x 5/16″
Work Height 45-1/2″
Notching Rectangular Notcher 1-5/8″ x 3-15/16″ x 3/8″
**Large V 4″ x 4″ x 3/8″
Work Height 41-9/16″
Equipped with Optional Electric Backgauge
NEW COST Over $22,000
