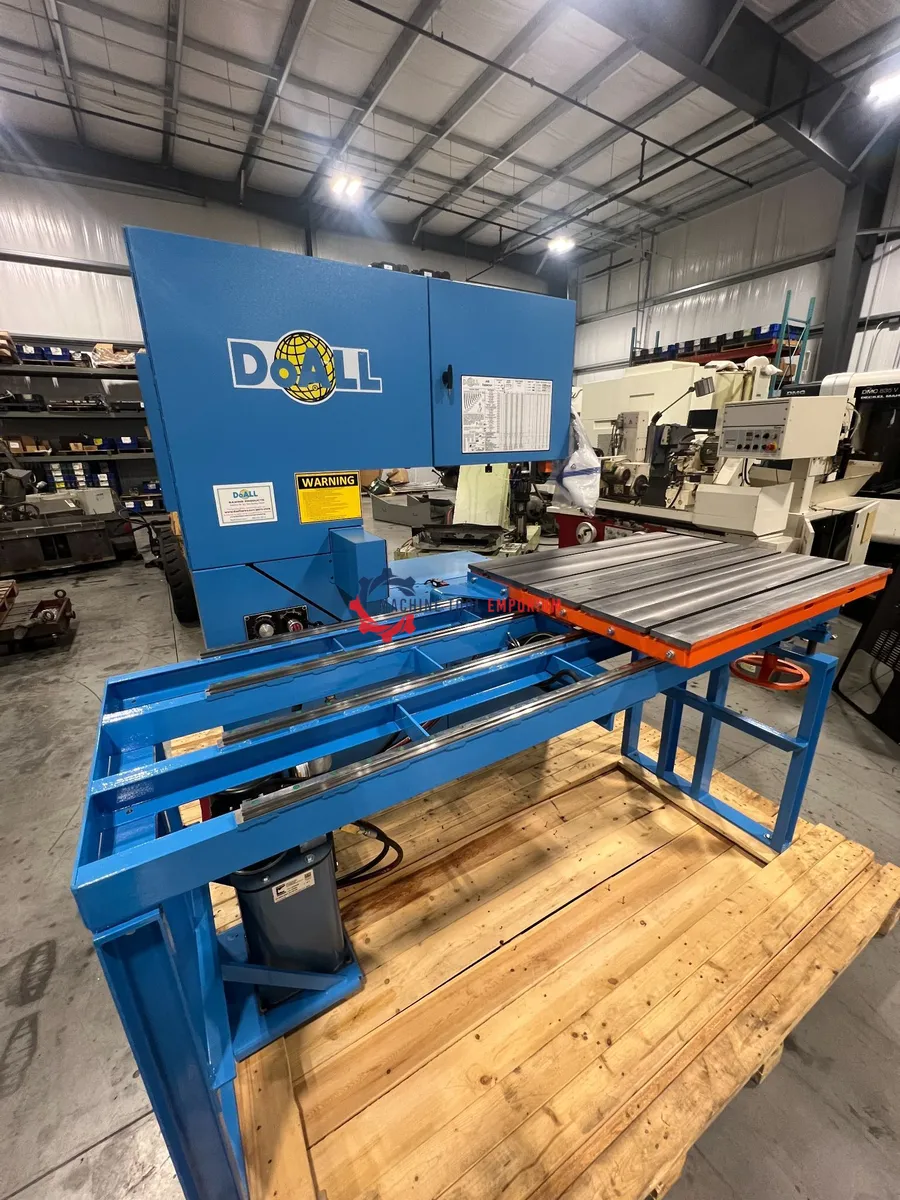

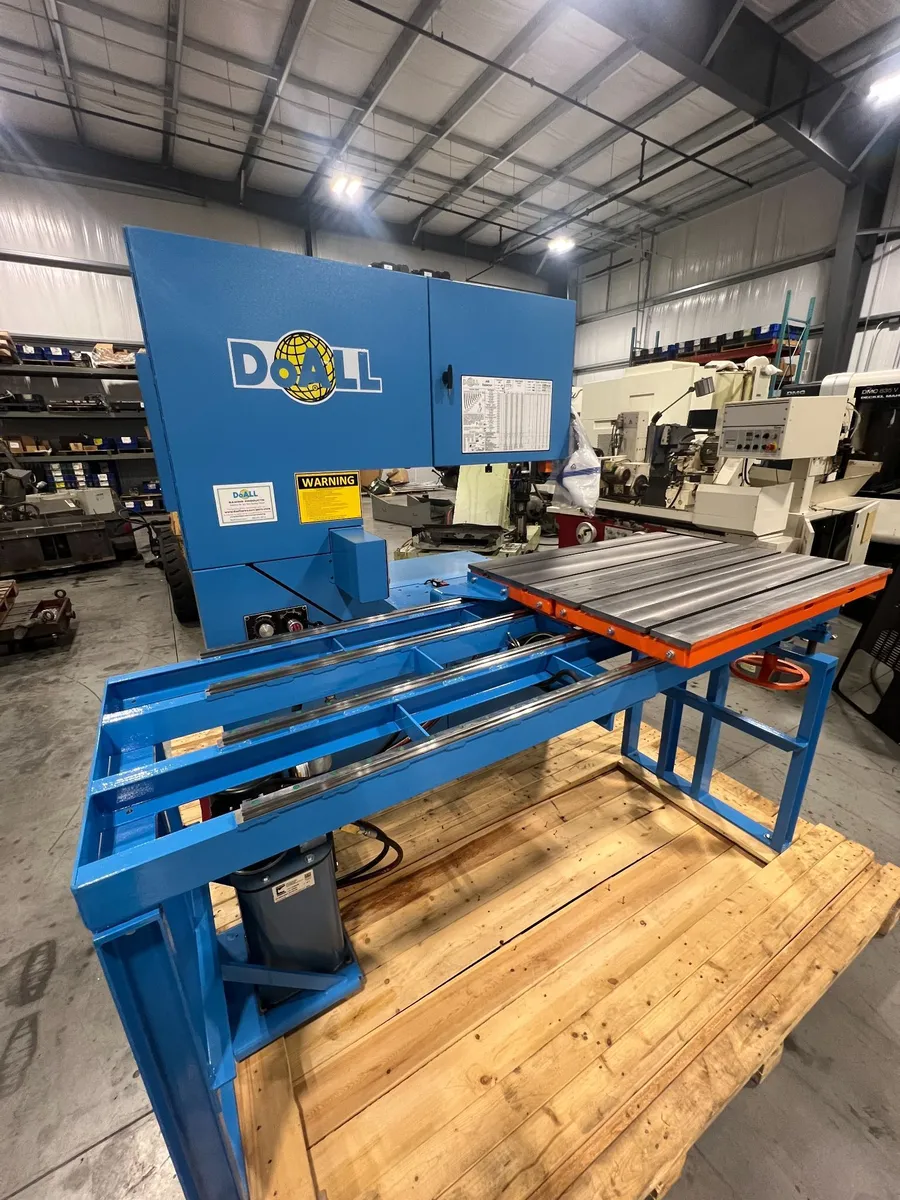

2022 DoAll 3613 V-5 Vertical Bandsaw W/HMD-36 Extended traverse work table
Have one to sell?
$39,900.00 USD
Or as low as $678.30 USD/month over 72 months
ConditionNew
1 available
New
Or as low as $678.30 USD/month over 72 months
Brand New, never used. Still on factory skid.
**Optional- HMD-36 Extended traverse work table: 1100 lb. capacity, four (4) 2″ T-Slots, 34 x 42″ table area, reduces work height by approximately 4″. $27,611 option**
Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width- 1". $98 option
Machine Capacity: w 36″ x h 13″ (915mm x 330mm)*** REDUCED WORK HEIGHT DUE TO TABLE, SEE BELOW****
The HMD-36 Power Table has a heavy duty table and frame construction that provides a very stable work surface.
T-Slots for a wide range of accessories enhance machine versatility.
Elevating hand wheel allows table to split for easy band changes.
43" Table Height, 0 to 24 ipm feed rate
The table and saw mount together to ensure straight and accurate cuts.
Production Level: Medium/Intermediate
Speed: High-Speed
Standard features: 5 Hp Drive Motor, Work Light, Chip Blower and Post Elevating Hand Wheel
Take all of the features and benefits of the 36XX Series of DoALL band saws and turn it up a notch with a higher-speed cutting rate for volume production applications.
The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life. As an additional safety feature for the operator, a dynamic braking function rapidly stops blade motion when power is shut-off – reducing kickback from materials and injury from the band saw blade.
The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials in one production day. The 3613-V5 can also be used for plastics, wood and other materials – making it a flexible “work horse” for facilities that demand only the best finished products.
Standard equipment for the 3613-V5 includes:
Table tilt to 45 degrees negative - 10 degrees positive.
20" Aluminum band wheels with crowned rubber tires.
Upper wheel adjustment 3"
Operator controls mounted on column.
One set of high speed, insert type guide blocks for bands 1/8" to 1/2"
Band wheel brush
Variable frequency band drive.
Work light
Manual band tension with indicator.
Post elevating hand wheel.
Chip box
Chip blower (plant air required)
Saw blade guards.
Band door interlocks.
Operation and parts manuals on USB stick.
Recommended job selector
