Extremely clean press, very well maintained and little use.
80 Ton, Adjustable 5″ Stroke, 12″ Shut Height with Servo Motor, Variable Speed, Imagine, total control of slide velocity, multiple stroke depth positions and dwell—all without loss of energy and accuracy in microns. The Komatsu H1F servo press delivers nearly 3 times more working energy than a conventional mechanical press – but consumes over 30% less electrical energy! The H1F series is also available in solid frame design (“O” frame) for applications where angular deflection is critical.
size 88
Tonnage 88 T
Stroke 5.12"
Shut Height 12.6"
Power 20.1 hp
Bed W 23"
Bed L 39"
SPM 75 strokes/min.

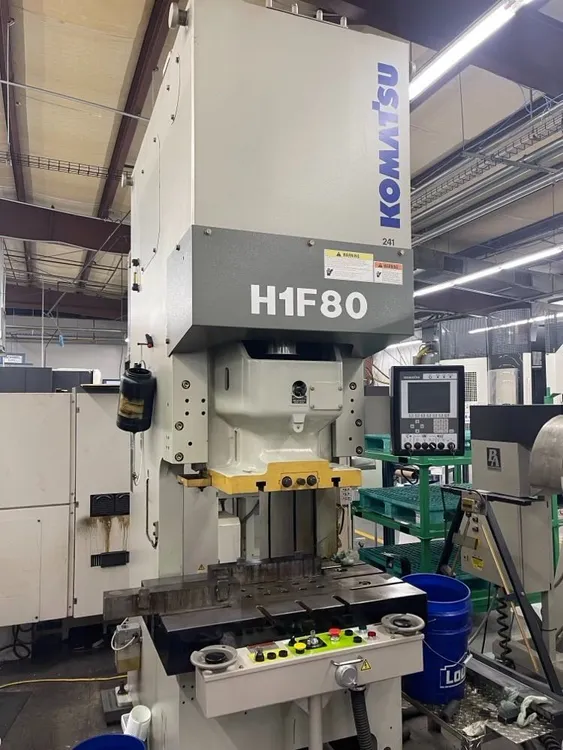

BRAND: KOMATSU
MODEL: H1F80-11
MODEL DESCRIPTION: SINGLE POINT SERVO DRIVE GAP FRAME PRESS
2 RS49-6 - 2019 COMBINATION FLIP TOP REEL STRAIGHTENER
P/A INDUSTRIES REEL STRAIGHTENER RS49-6
STOCK THICKNESS RANGE: 0.015" - 0.068"
STOCK WIDTH: 4"
STRAIGHTENING ROLL DIAMETER: 1.50"
PINCH ROLL DIAMETER: 1.50"
SPEED RANGE IPM: 0 - 813
MOTOR: 3/4 HP DC
LOOP CONTROL: DANCER ARM PROPORTIONAL LOOP CONTROL
