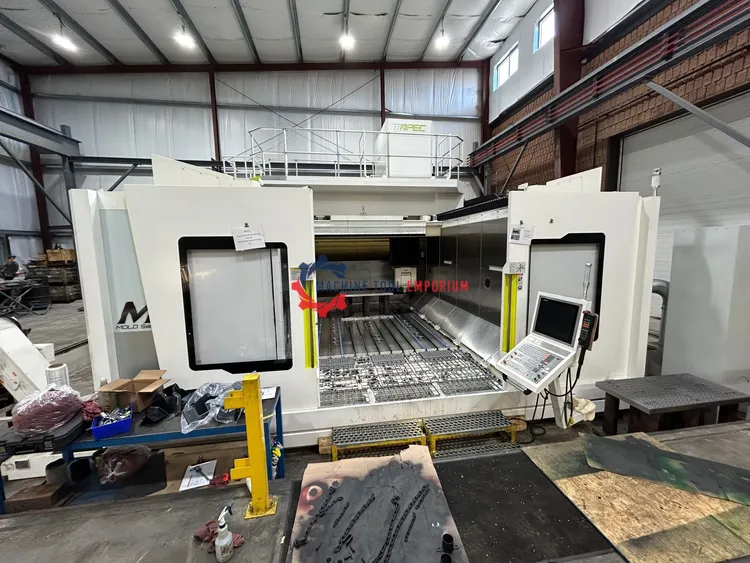

APEC GM2540 5 Axis Gantry Mill

MAX. Table load kg/m² 8,000
Rapid traverse m /min XYZ=60
X.Y.Z axis acceleration m/sec² 5-8
Spindle taper HSK63A
Spindle speed rpm 24,000
Spindle power kW 35/42
Spindle torque Nm 55.6/67.2

Milling Head
Swivel/Rotation Torque Nm B=1,192/1,980
C=1,050/1,740
Swivel/Rotation Speed rpm B=C=30(cont)/60(max)
Swivel/Rotation Angle deg HSK63A：B=±120° C=±360°
HSK100A：B=±115° C=±360°
Clamping Torque Nm B=4,000 C=4,000
Tool shank pcs 20T
Max. tool length mm 300
Max. tool diameter with
adjacent tool mm Ø150
Max. tool diameter
without an adjacent tool mm Ø180
Weight tons. 84
