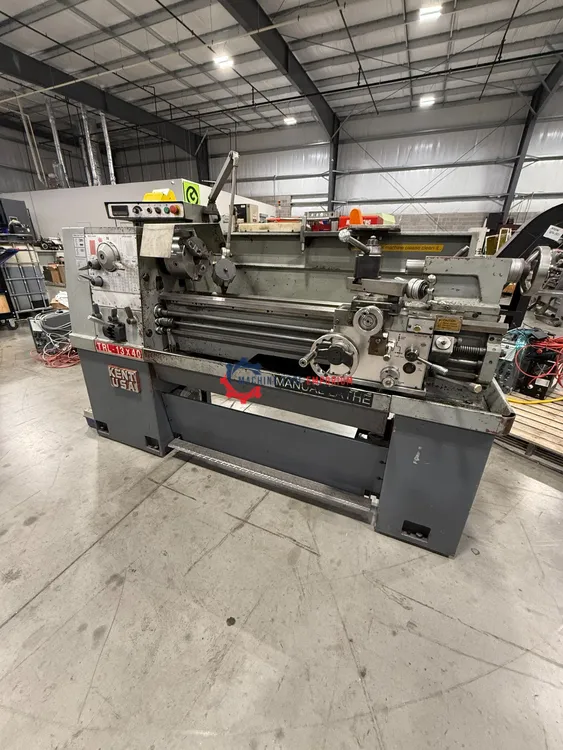

KENT USA TRL-1340 Tool Room Lathe 13" x 40", Excellent
Have one to sell?
ConditionUsed
1 available
Boost your workshop efficiency with the KENT USA TRL-1340 Lathe, offering a 13.375" swing and 40" centers. Enjoy up to 2,570 RPM and a robust 5 hp. Used yet in excellent condition, this lathe is an ideal addition to any tool room. NOTE: This is the "V" Model which is the top of the line option for the TRL series, this denotes a VFD drive to control the spindle. MSRP IS $16,000
Swing Over Bed (In. | mm) 13-3/8 | 340
Swing Over Cross Slide (In. | mm) 8-1/4 | 210
Swing Over Gap (In. | mm) 20 | 508
Gap Width in Front of Face Plate (In. | mm) 4.48 | 114
Width of Bed (In. | mm) 9 | 230
Distance Between Centers (In. | mm) 40 | 1000
Cross Slide Travel (In. | mm) 7 | 180
Compound Slide Travel (In. | mm) 4 | 105
Spindle Through Hole Diameter (In. | mm) 1-9/16 | 40
Spindle Nose - Camlock D1-4
Spindle Bore Taper MT-5
Spindle Speeds 16
Spindle Speed Range (RPM) 50 - 2570
Range of Longitudinal Feeds (IPR) .002 - .067
Range of Cross Feeds (IPR) .001 - .0375
Number of Inch Threads 45
Range of Inch Threads (TPI) 2 - 72
Number of Metric Threads 39
Range of Metric Threads (mm) .2 - 14
Number of Diametral Pitch Threads 21
Range of Diametral Pitch Threads (D.P.) 8 - 44
Number of Modular Pitch Threads 18
Range of Modular Pitch Threads (M.P.) .3 - 3.5
Leadscrew Diameter (In. | mm) 1-1/8 | 28.5
Leadscrew Thread Pitch (TPI) 4
Tailstock Quill Travel (In. | mm) 4 | 105
Tailstock Quill Diameter (In. | mm) 2 | 50
Tailstock Quill Taper MT-3
Main Motor (HP | kW) 5 | 3.72
220V/440v/3 Phase/60 Hz.,
Prewired 220V
Coolant Pump Motor (HP | kW) 1/8 | 0.09
Overall Dimensions (L x W x H/In.) 81-1/2 x 32 x 56
Packing Dimensions (L x W x H/In.) 90 x 37 x 60
Net Weight (Lbs.) 2,200
Gross Weight (Lbs.) 2,440
