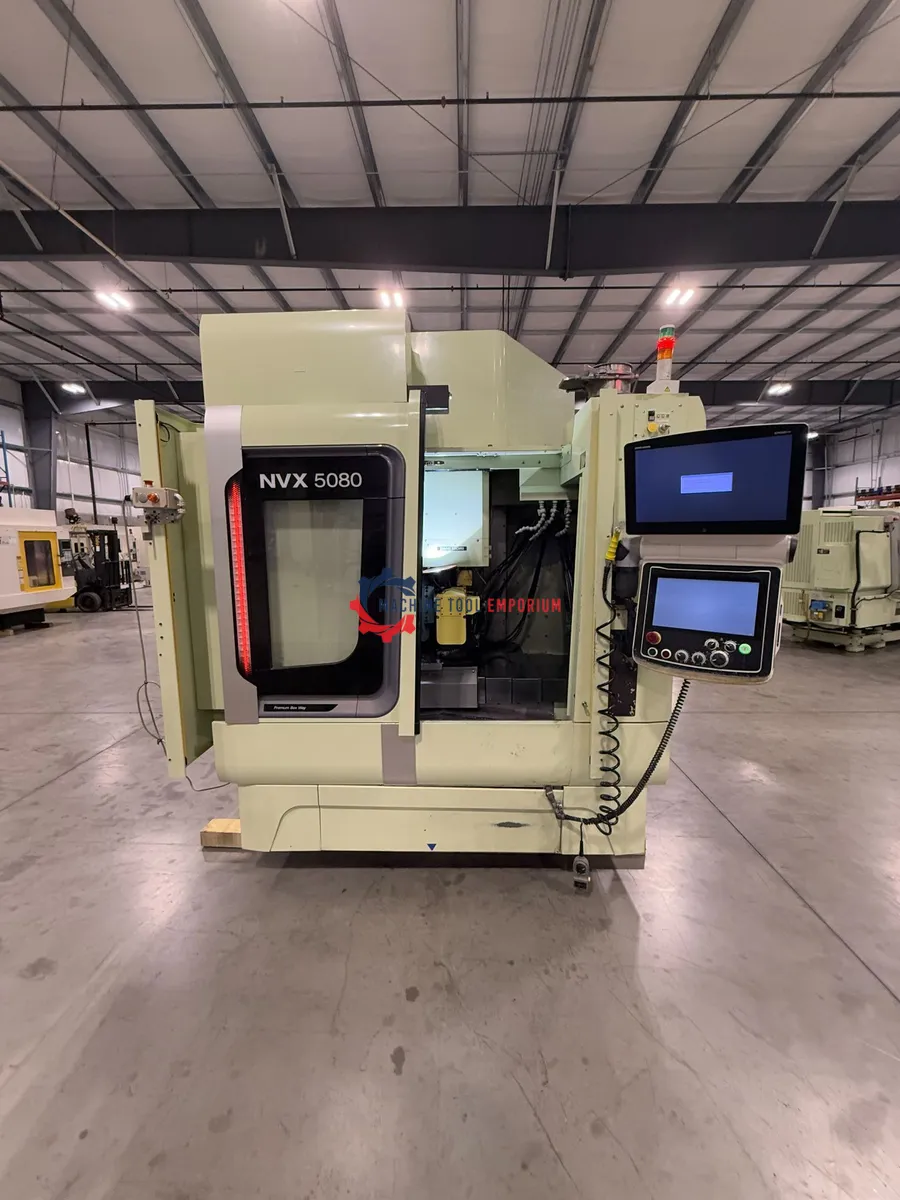

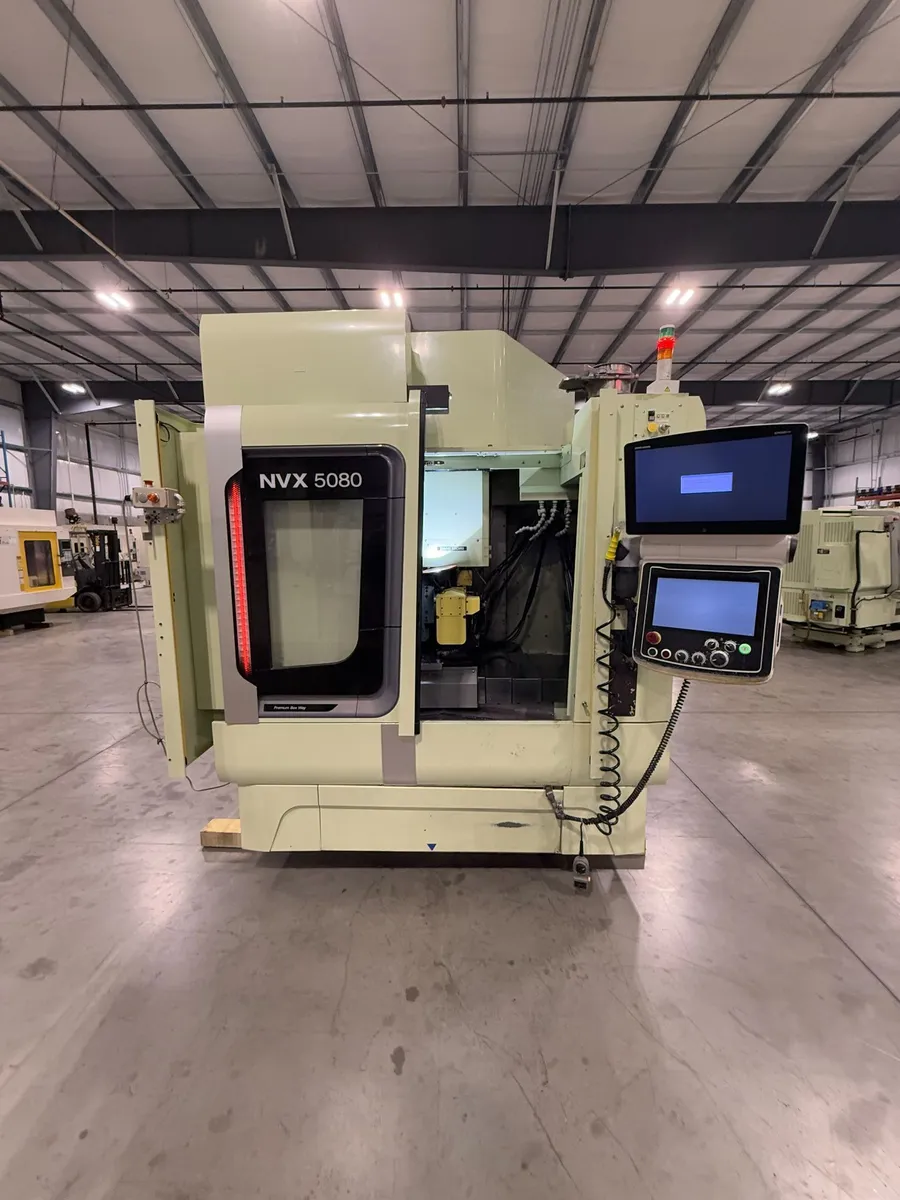

2017 DMG Mori NVX 5080/40, 4th Axis, Hydraulic Clamping
Have one to sell?
ConditionUsed
1 available
Good running machine, only ever cut cast aluminum. Can be seen under power, free loading.
Nikken CNC-260 Fourth Axis Rotary Table
Nikken TAT-105 Tail Stock W/Bearing and Brake
Mayfran Consep 2000WS Chip Conveyor
Hydraulic Fixture Clamping
Coolant Chiller
HIgh Pressure Coolant
Flood Coolant
Max. workpiece length
43.3 in.
Max. workpiece width
23.6 in.
Max. workpiece height
20.1 in.
Max. workpiece weight W/O 4th Axis
2204.6 lbs.
Main Machine Dimensions- 93" W x 108" Front To Back x 110" Tall
Chip Conveyor- 93" Long x 43" W x 76" Tall
Chillers/Hydraulic Units- 3'x3'x4' QTY 3
Overall Machine Floor Space Requirement- 12' Wide x 15' Front to Back
Power Requirements-220v 3ph
