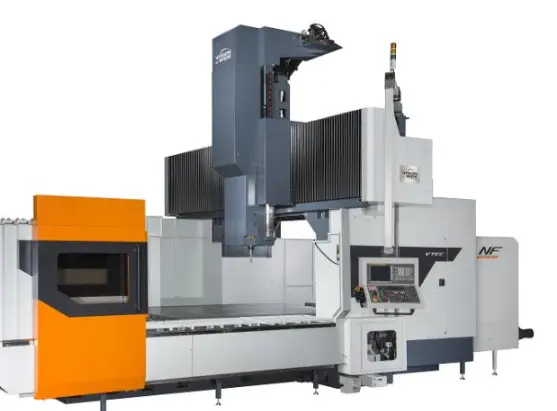

Vision Wide VTEC NF-4223 Bridge Mill, NEW IN CRATE 165"x90"

Vision Wide NF4223 with Fanuc 0iMF Control
FAIR MARKET BASE UNIT PRICE $482,900.00

Standard Accessory & Function:
1. Fanuc 0i MF CNC
2. Spindle oil cooling device
3. Twin hydraulic cylinders with pressured air
assistance balancing system
4. X, Y axis ball screw supporter X axis 4m above, y axis 3m and above
5. Centralized auto lubrication system
6. Independent lubrication oil collector for 3 axes
7. Air blast through spindle
8. Wash gun & pneumatic interface
9. Cutting cooling system
10. 40 tool magazine with arm type ATC
11. Enclosed sheet metal guard without roof, only for x<8m)
12. Four Piece splash guard Only for X ≥8m)
13. Swiveling arm type operation panel
14. Screw type chip conveyor on table sides
15. Caterpillar type chip conveyor
16. Heat exchanger for electrical cabinet
17. Work light
18. Operation cycle finish and alarm lights
19. Moveable manual pulse generator
20. Footswitch for tool clamping
21. RJ45 interface
22. XYZ-axis absolute pulse coder feedback
23. XYZ-axis travel hard limits protection
24. Spindle cutting load software protection
25. Auto power off
26. Vision Wide FX graphical user interface
27. Foundation pads and bolts kits
28. Adjustment tool and tool kits
29. Technical manuals operation, maintenance manual and circuit
diagram

STANDARD OPTIONS:
Fanuc 0iMF Plus Control
Flood Coolant System
Air thru Spindle
Auto Power Off
Full Guards (without roof)
Spindle Oil Cooler
Remote Pulse Generator
Screw Type Chip Conveyors
Caterpillar Style Chip Conveyor
Ethernet Interface
40 Station ATC
All other standard Accessories

Additional Options:
6,000 RPM 2 Step Gear with High Torque Fanuc a22i
Z Axis Travel 1020mm Box Way. Distance Table to Nose 350 – 1,370 mm
70 Bar CTS Prep
Big Plus Spindle CT50
AICC 400 Block Look Ahead
Nano Smoothing

Terms and Conditions:
1 Year FANUC Control Warranty.

No machine warranty or installation.

Terms of Payment:
100% payment due prior to shipment.

Total Price AS OPTIONED FCA LA $532,350.00.
SPECIAL PRICING ON REQUEST
