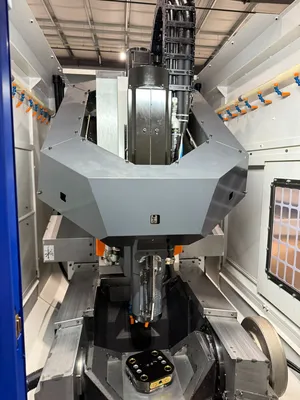

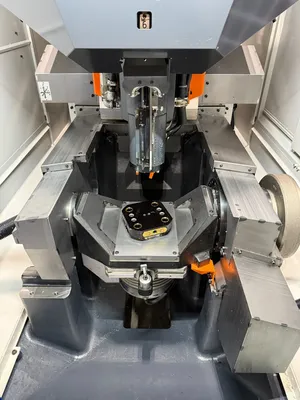

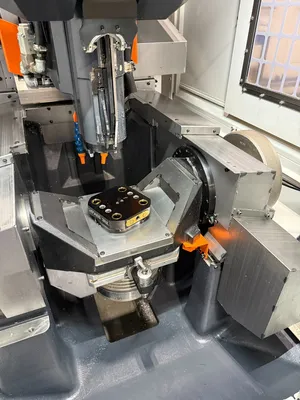

2020 Brother Speedio M200X3 Vertical Machining Center W/Turning
Have one to sell?
ConditionUsed
1 available
Super clean, very low hour machine. Came from a prototyping shop. Can be seen under power. Free loading.
Manual Pulse Generator (HPG-B-100-L-CL)
Work Light Kit (1-Light) w/Brackets (WL100-SPD)
Spindle Override (6B6512001)
High Accuracy Mode BII (6B6904002)
435 PSI High Pressure Pump (SK-CTS Option)
Amano MJ-15 Mist Collector with Top Mount Installation Kit
Renishaw OMP40 Spindle Probe Kit
Renishaw 2" Probe Gage Ring
Renishaw TS27R H/W Tool Probe Kit
Renishaw BT30 Calibration Master
Renishaw Brother Inspection Plus Software Kit
Custom M200X3 Tool Probe Mount
Side Door MX3 Option M200X3 ONLY (6C9188001)
Memory EXP COO Control (6B6843001)
Amano Mist Collector Stand #H-4159
Amano Mist Collector Stand Casters #H-4162
Renishaw Square Stylus #A-2008-0384
Travels (mm): X: 200 Y: 440 Z: 305
Travels (A, C) (deg.): A: -30 to 120, C: 360
Max. spindle speed (min-1): 10,000/ (Optional) 16,000
Tool storage capacity(pcs.): 22
Max. turning spindle speed (min-1): 2,000
M200X3
Max. spindle speed
(Optional) 16,000
Travels
X: 200 Y: 440 Z: 305 A(deg.):-30 to 120 C(deg.):360
Tool storage capacity
22
Rapid traverse rate (XYZ-area)
50 x 50 x 50
Indexing feedrate(A,C)
A:60 C:200
Required Floor Space
1,280 x 3,862
BT dual contact spindle(BIG-PLUS)
YES
Coolant Through Spindle(CTS)
YES
