2020 Brother Speedio M200X3 Vertical Machining Center W/Turning less than 500hrs
Sold

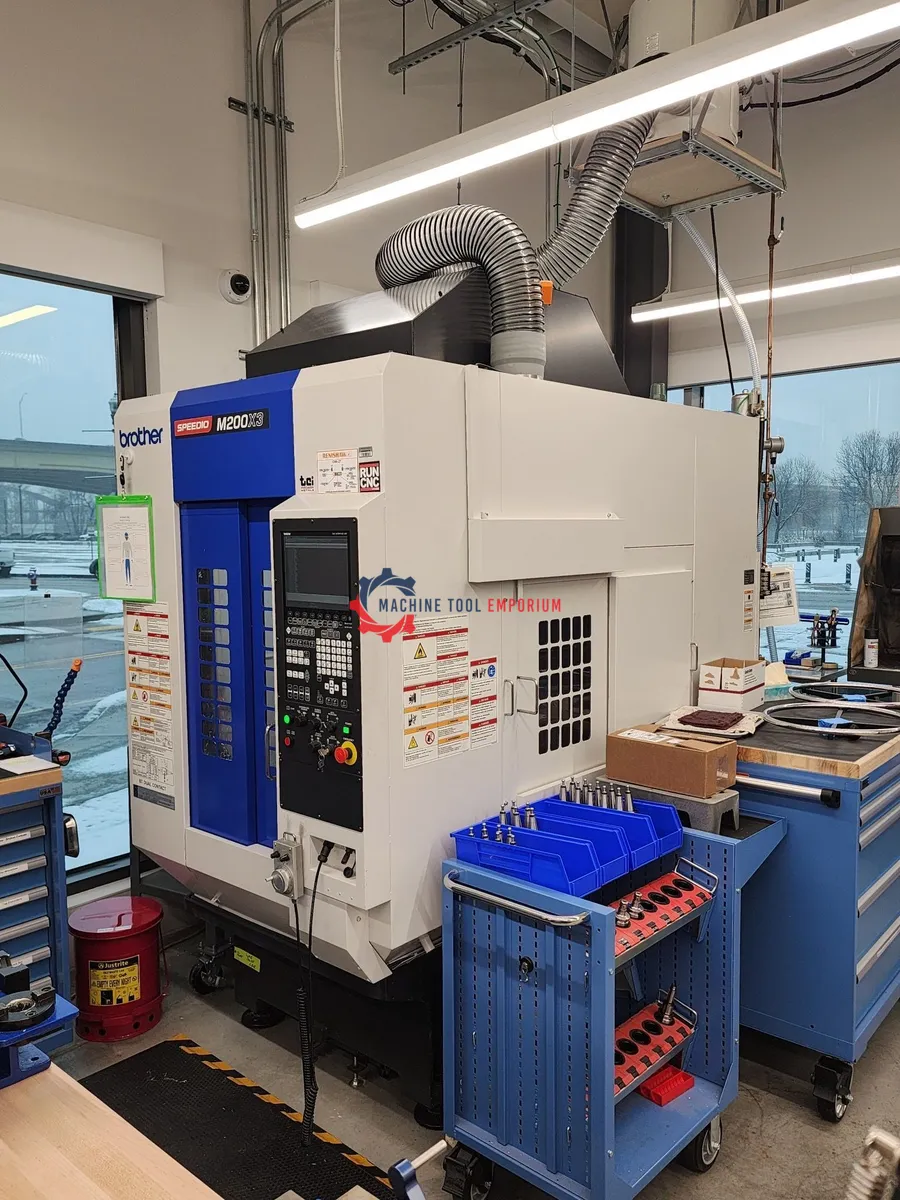

2020 Brother Speedio M200X3 Vertical Machining Center W/Turning less than 500hrs

Vertical Machining Centers (5-Axis or More)
Manufacturer:
BROTHER
Model:
SPEEDIO M200 X 3
Year:
2020
Serial #:
JPN116704
Super clean, very low hour machine. Came from a prototyping shop. Can be seen under power. Free loading.

Manual Pulse Generator (HPG-B-100-L-CL)

Work Light Kit (1-Light) w/Brackets (WL100-SPD)

Spindle Override (6B6512001)

High Accuracy Mode BII (6B6904002)

435 PSI High Pressure Pump (SK-CTS Option)

Amano MJ-15 Mist Collector with Top Mount Installation Kit

Renishaw OMP40 Spindle Probe Kit

Renishaw 2" Probe Gage Ring

Renishaw TS27R H/W Tool Probe Kit

Renishaw BT30 Calibration Master

Renishaw Brother Inspection Plus Software Kit

Custom M200X3 Tool Probe Mount

Side Door MX3 Option M200X3 ONLY (6C9188001)

Memory EXP COO Control (6B6843001)

Amano Mist Collector Stand #H-4159

Amano Mist Collector Stand Casters #H-4162

Renishaw Square Stylus #A-2008-0384

X200 mm7.874"
Y440 mm17.323"
Z305 mm12.008"
# Axis55
RPM16,000 RPM16,000 RPM
# ATC2222
TaperBT 30 DCBT 30 DC
ControlCNC (CNC-A00)CNC (CNC-A00)
Dimensions62.67 x 59.1 x 85.8362.67 x 59.1 x 85.83
Weight68006800

Travels (mm): X: 200 Y: 440 Z: 305
Travels (A, C) (deg.): A: -30 to 120, C: 360
Max. spindle speed (min-1): 10,000/ (Optional) 16,000
Tool storage capacity(pcs.): 22
Max. turning spindle speed (min-1): 2,000

M200X3
Max. spindle speed
(Optional) 16,000

Travels
X: 200 Y: 440 Z: 305 A(deg.):-30 to 120 C(deg.):360

Tool storage capacity
22

Rapid traverse rate (XYZ-area)
50 x 50 x 50

Indexing feedrate(A,C)
A:60 C:200

Required Floor Space
1,280 x 3,862

BT dual contact spindle(BIG-PLUS)
YES

Coolant Through Spindle(CTS)
YES

- Specifications are believed to be accurate and are to be verified by the buyer.
