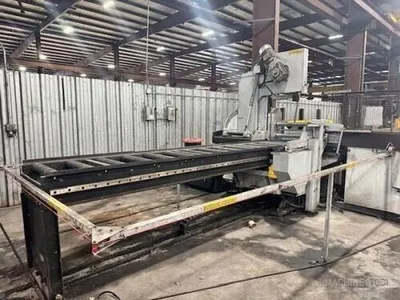

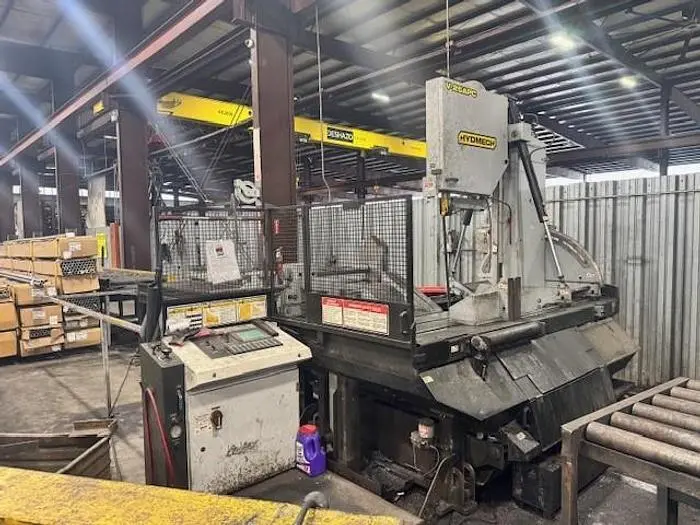

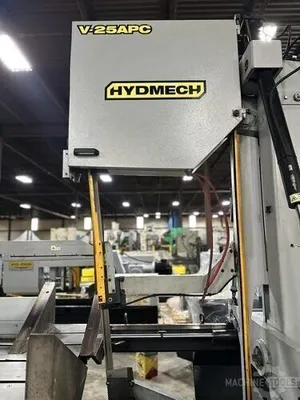

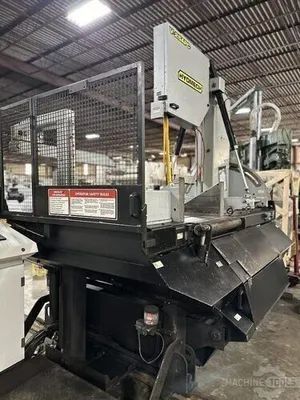

Used 2021 HYD-MECH V-25APC | Vertical Band Saws

• 6° canted head allows for efficient cutting and improved blade life

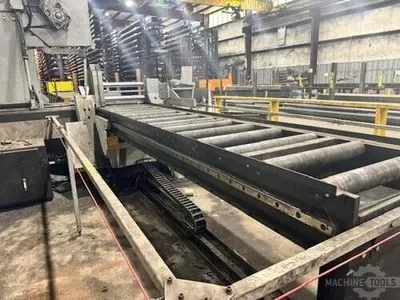

• 120” bar feed, left side

• Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation.

Powered by a rack and pinion servo drive.

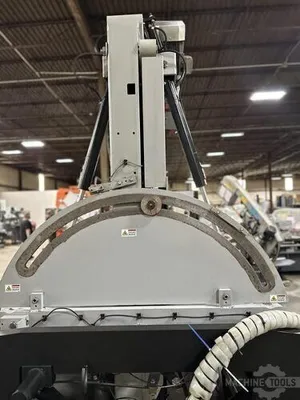

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

• Hydraulic head tilt

• Cast iron band wheels

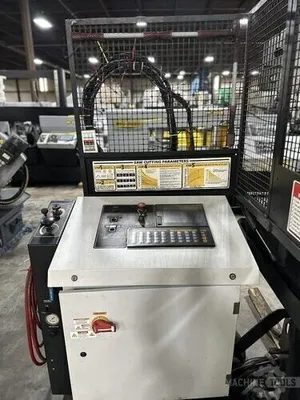

• Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.

• Two full stroking hydraulic vises

• Hydraulically powered, programmable guide arm attached to saw column.

• 10 HP VFD. True direct blade drive – no belts/pulleys

• Blade chamber separates material from cut part

• Hydraulic chip conveyor

• Replaceable blade brush

• Robust steel base

• Out of stock switch

• Blade breakage switch

• Easy access electrical panel and hydraulics

• Pop-up feed roller – one, opposite bar feed

• Hydraulic band tensioning with digital readout

• Replaceable carbide guide inserts

• 3 HP hydraulic pump provides system pressure

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Variable vise pressure
Optional Machine Features
• Hydraulic overhead bundling

• Out feed vise
