| Swing | 31.7" | 805.18 mm |
| Machining Length | 80" | 2,032 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 7" | 177.8 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 28" | 711.2 mm |

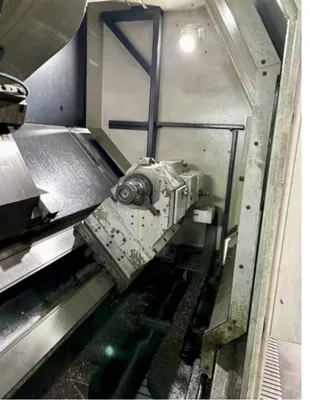

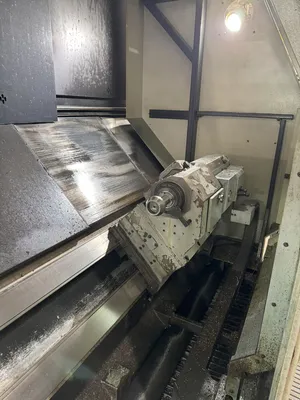

| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

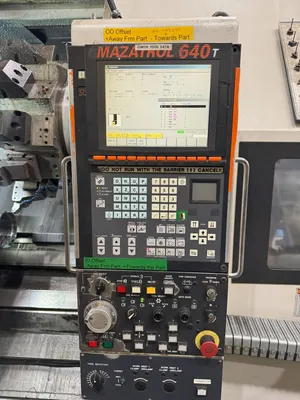

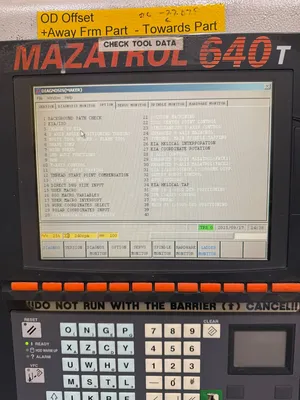

| Control | CNC (640T) | CNC (640T) |
| Dimensions | Machine L 232” x W 103” H 114” Chip L 169” x W 42” H 60” | Machine L 232” x W 103” H 114” Chip L 169” x W 42” H 60” |

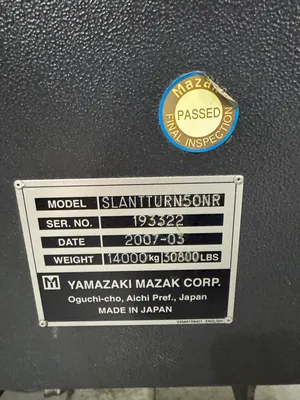

| Weight | 30800 | 30800 |

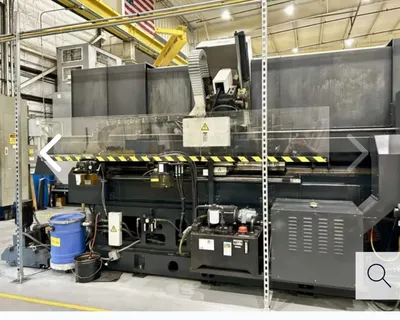

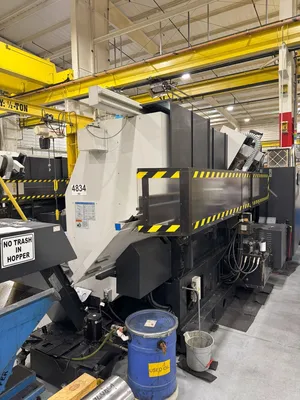

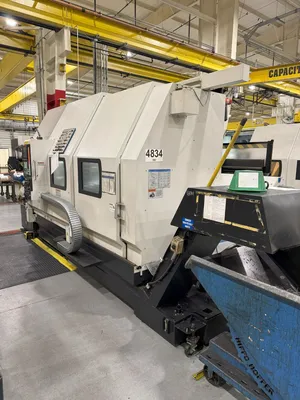

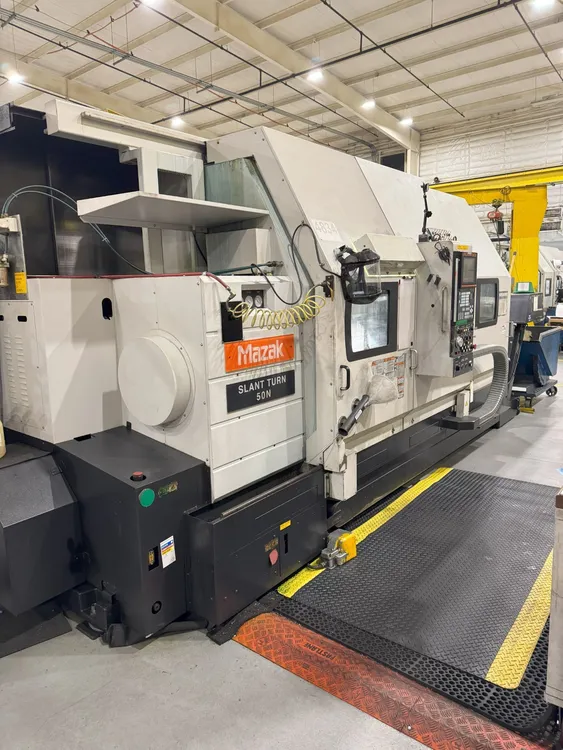

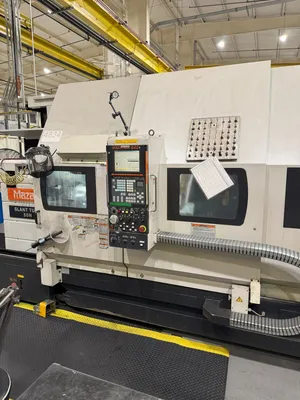

Mazak SLANTTURN 50N
Maximum Swing Over Bed: 31.7"
Swing Over Carriage: 22"
Maximum Cutting Diameter: 28"
Center Distance: 81"
Spindle Speed: 2-750 RPM
Spindle Bore: 7.1"
Spindle Motor: 50 HP
Main Motor: 50 HP
Travel X-Axis: 22.6"
Travel Z-Axis: 80"
Rapid Traverse X-Axis: 472.4 IPM
Rapid Traverse Z-Axis: 551.18 IPM
Approximate Weight: 26,000 lbs.
Includes chip conveyor, does not include tooling.

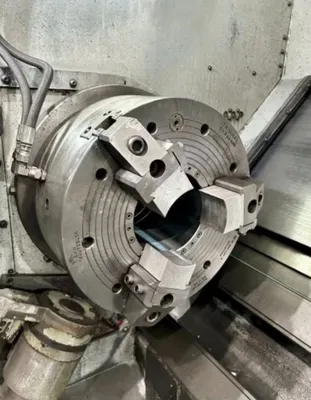

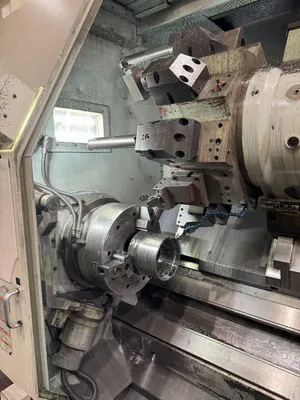

Front Chuck: 18” AIR CHUCK
