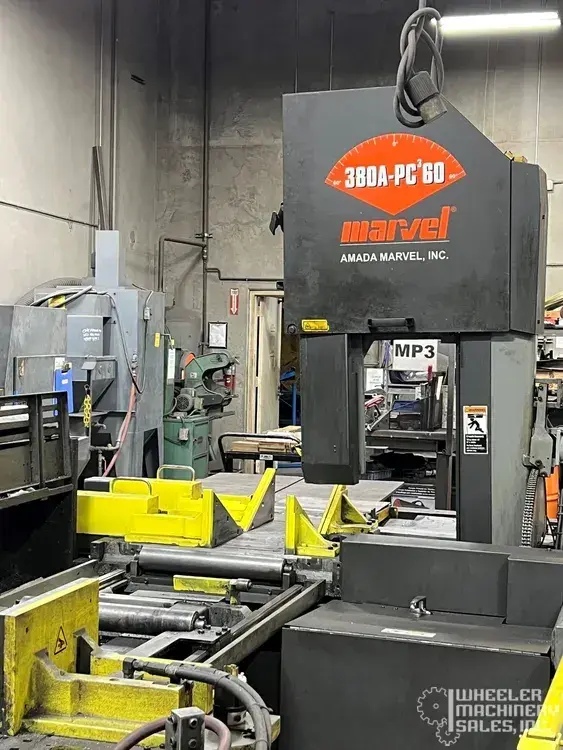

Amada Marvel V380PC3 CNC Vertical Tilting Frame Bandsaw

Type:
SAWS, BAND, VERTICAL
Manufacturer:
AMADA MARVEL
Model:
V380PC3
Year:
2019
Stock #:
7477
Status:
For Sale
Country:
United States
Description
AMADA MARVEL V380PC3 vertical band saw for sale. Used condition with advanced features including a 5 HP motor, hydraulic system, programmable controls, and multiple cutting angles. Perfect for precise miter cuts and efficient operation.

Specifications
2019 Amada Marvel V380PC3 CNC Vertical Tilting Frame Bandsaw #7477

SPECIFICATIONS:
CAPACITY AT NOMINAL 0° CANT: 15" x 20", 15" Round
CAPACITY AT 45°: 15" x 14", 14" Round
CAPACITY AT 60°: 15" x 9.25", 9.25" Round
CAPACITY AT -45°: 15" x 13.25", 13.25" Round
CAPACITY AT -60°: 15" x 8", 8" Round
CAPACITY AT NOMINAL 3° CANT: 14.5" x 20", 14.5" Round
CAPACITY AT45°: 14.5" x 13.5", 13.5" Round
CAPACITY AT 60°: 14.5" x 8.75", 8.75" Round
CAPACITY AT -45°: 14.5" x 12.75", 12.75" Round
CAPACITY AT -60°: 14.5" x 7.75", 7.75" Round

Blade Drive: 5 HP electric with sensor less vector control for smooth acceleration and full torque.

Speed Range: Infinitely variable: 60 to 400 FPM (18 to 122 m/min). Blade speed can be automatically set when material is selected

Tilting Column: For miter cutting up to 60o left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered, chain driven, with encoder feedback and MARVEL PC3 controller.

0° – 3° Canted Column: Adjustable 0 or 3-degree forward approach angle, for notching, or increased efficiency in cutting of structural materials. Must specify if 0° or straight column set up is desired as the machines are by default shipped from the factory in 3° Canted Column.

Feed Force: Direct Force Sensing Electric Ball Screw Feed which combines more consistent feed force with greater control, 0 – 300 lbs (0-1335 N), column travels on re-circulating linear ball ways. Feed pressure can be automatically set when material is selected.

Jammed Blade Protection: Automatically senses resistance as the column returns and stops to prevent blade damage.

Blade: 16’ (4877 mm) long x 1.25″ (32 mm) wide, .042″ (1.07 mm). One Welded-Edge Band is furnished with each machine as part of standard Start-up supplies.

Blade Guides: Patent pending Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.

Blade Tension: Hydraulically controlled, 35,000 psi. max. (241 MPa). Machine equipped with automatic blade break / blade stall shut off switch.

Upper Blade Guide Arm: Hydraulically positioned and locking, travels on linear guides, controlled through PC3 touch screen control.

Vises: Hydraulic, half stroking with 6.7” (170 mm) high x 11.4” (290 mm) wide 60o faceplates. Optional variable vise pressure available. (Option Code M9A).

Coolant System: Built-in Flood system (Capacity of 26 gallons), available with Drop Lubrication system (requires compressed air connection)(Option Codes ML1 & ML2), including chip pan with chip removal ramp (optional Manual Chip Conveyor available).

Work-Rest Rollers: One ball bearing roller on the entry side of the machine bed.

Flushing Hose: Washes away chips from hard-to-get-at places reducing clean-up time.

Automatic Bar Feed: The Automatic Bar Feed design features a 48” stroke length with indexing speeds of up to 70 ft./min., and creep speeds of 33 in../min. The bar feed vise is electrically driven and combines precision double ball screws with preloaded re-circulating ball linear guides, resulting in positioning accuracy of +/- .005” per index. The vise itself is hydraulically clamped to prevent material slippage. Material can also be fed through the machine manually in both directions using the shuttle vise. Optional outboard and second machine vises are available (must specify right or left hand machine configuration at the time of order – Option Codes F3 & F4).

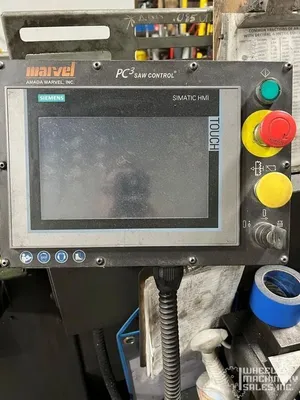

MARVEL PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 9” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library. Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media. Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage.

Standard Left-to-Right Work Entry: Opposite Hand or Right-to-Left work entry available (Modification M4A).

Motors: Main Drive: 5 H.P. (3.75 kW), Vector Duty Induction Motor TENV
Coolant Pump: 1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump: 2 H.P. (1.5 kW), totally enclosed fan cooled, ball bearing, system pressure 800 psi (5.5 MPa).

Controls: IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection. Power supply provides low voltage (24 volts DC) control to all push buttons at operator’s control panel and machine lighting circuits. PLC control and drives mounted in moisture-tight compartment with vibration isolation mountings. Electrical Equipment conforms to National Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled.

Notice: This quotation is based on the assumption that the end user’s electrical power supply conforms to National Electrical Code NFPA No. 79-2012, section 4.3 at the machine terminals. A copy of this section is available upon request.

Standard Machine Color: Machine Tool Gray

Additional Options

Variable Vise Pressure Control

Second Machine Vise, Complete

Hydraulic Hold-Down Machine

Hydraulic Hold-Down Shuttle

Smart Guide Arm

Mist Lube – Automatic

Powered Chip Conveyor

First Section Dead Roller Conveyor
