| Swing | 33.5" | 850.9 mm |
| Machining Length | 83.7" | 2,126 mm |
| # Axis | 4 | 4 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0i-Plus) | CNC (Fanuc 0i-Plus) |
| Dimensions | 221" x 90" x 91" | 221" x 90" x 91" |
| Weight | 23810 | 23810 |
SWING OVER BED 33.5"
MAX CUTTING DIAMETER 16.5"
MAX CUTTING LENGTH 83.7"
X-AXIS TRAVEL 11.5"
Y-AXIS Yes
Y-AXIS TRAVEL 5.12"(±2.6")
Z-AXIS TRAVEL 86.2"
C-AXIS INDEXING FULL C-AXIS
CHUCK SIZE 12"
BAR CAPACITY 4"
SPINDLE BORE 4.5"
SPINDLE NOSE A2-11
SPINDLE MOTOR 35 hp
SPINDLE SPEED 2,800 RPM
RAPID TRAVERSE RATE - X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE - Y-AXIS 393.7 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,181 in/min.
TURRET CAPACITY 12
TURRET TYPE BMT65
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 10 hp
Dimensions 221" x 90" x 91"
Weight 23,810 lbs
Equipped With
FANUC 0i-PLUS CONTROL W/iHMi TOUCH SCREEN
GUIDE I CONVERSATIONAL PROGRAMMING
Y-AXIS
LIVE MILLING
EXTRA LONG BED (83.7")
12", 3-JAW HYDRUALIC CHUCK
TOOL PRESETTER
PROGRAMMABLE TAILSTOCK
RENISHAW RLP40 PROBE (RADIO LATHE PROBE) & RMI RECEIVER

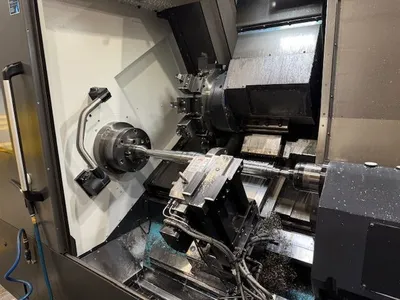

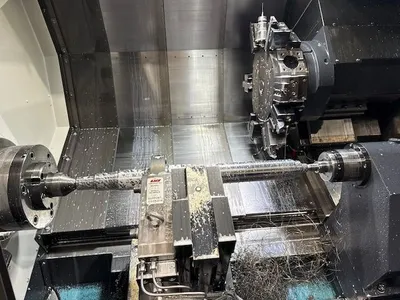

LNS AUTOBLOCK SELF-CENTERING HYDRAULIC STEADY REST
PROGRAMMABLE POSITIONING BRACKET FOR HYRDAULIC STEADY REST
TURBO SIDE DISCHARGE CHIP CONVEYOR
AUTO DOOR (DOUBLE DOOR PNUEMATIC)
CAST IRON SLANT BED
BOX WAYS
AS OF SEPTEMBER, 2025 - CUTTING TIME HOURS: 1,192

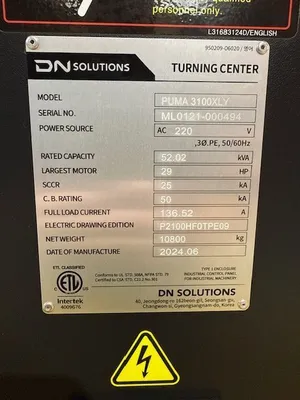

MACHINE MANUFACTURED DATE: JUNE, 2024
FULL REPLACEMENT COST, AS EQUIPPED - $374,000
CAN BE SEEN UNDER POWER IN LAGRANGE KY. FREE LOADING.
