2024 Nikon VOXLS 40 C 225 CT Scanner

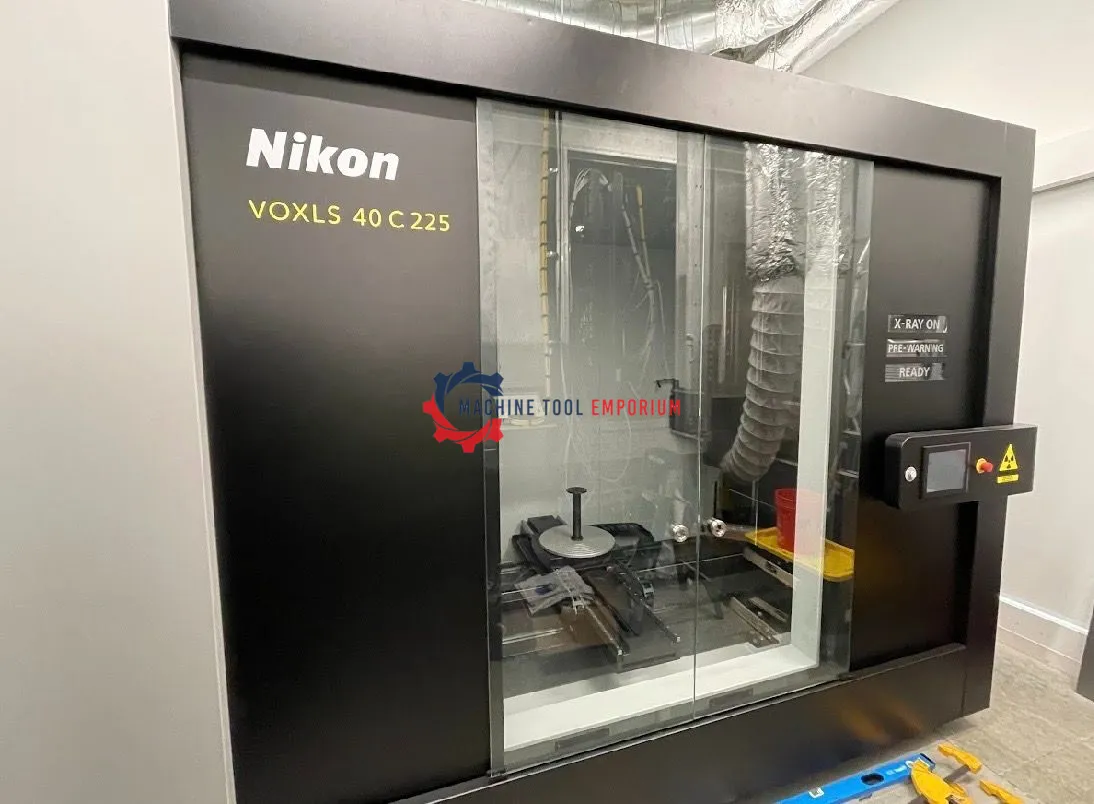

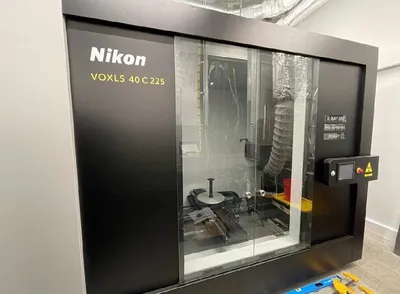

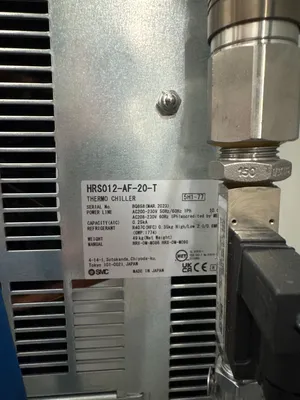

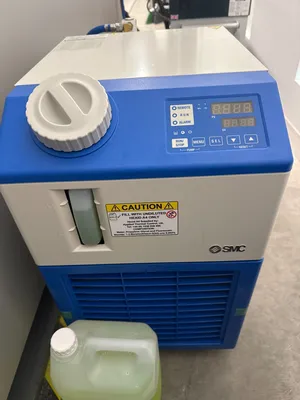

Nikon CT Scanner (Model: VOXLS 40 C 225)
Item 1: LES-800-128 — 40 C 450 System
- 7 Axis Granite based manipulator, dual source, up to dual detector, in 1-piece shielded
cabinet

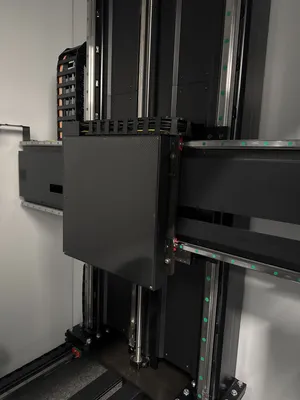

- 7 Axis precision manipulator
- Metrology grade granite foundation
- Precision servo control and encoders

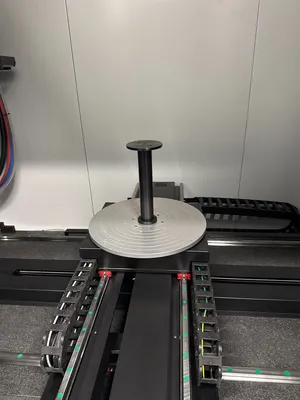

- Precision rotational stage for accurate CT acquisition
- 275kg max sample weight for DR and CT N26 (centered load)
- Manipulator travel: X = 1130mm, Y = 1300mm, Z = 1600mm, Rotate = 360°
- Max FID: 1480mm (Varex XRD 4343N detector, 225kV), 1520mm (Varex XRD 4343N
detector, 450kV), 1200mm Fixed (CLDA, 450kV)
- Max sample swept diameter in single FOV: 360mm (Varex XRD 4343N detector,
225kV/450kV), 570mm (CLDA, 450kV)
- Up to 3-position panel shift (Optional add-on upgrade required)
- Add panel shift upgrade to enable up to 3-position panel shift
- Increases scanning diameter by allowing up to 3 sets of projections to be captured with
detector in mirroring offset positions
- Max sample swept diameter with 3-position panel scan: 575mm (Varex XRD 4343N
detector, 225kV), 800mm (Varex XRD 4343N detector, 450kV)
- Dual source mount
- Up to dual detector mount
- Provides for mounting both an area detector and a CLDA on a motorized vertical
positioning assembly
- Either detector can be automatically positioned for alignment with the X-ray beam

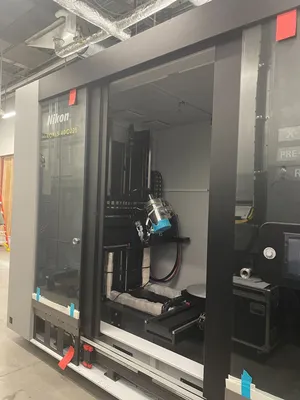

- Shielded X-ray enclosure: L = 3617mm, W = 2057mm, H = 2743mm, Weight = 20000kg
- System computer (WinOS 64bit) with 16GB RAM and single high definition flat screen
monitor
- Inspect-X system control software
- Image processing, Fast CT, Limited angle CT, Joystick control
Item 2: 0156434 — Nikon 225 kV microfocus source with reflection target
- 225kV, 225W high power X-ray source with reflection target
- X-ray focal spot size from 3 microns up to 7W
- Open tube with replaceable Tungsten filament for low cost of ownership
- Basic copper filter kit
- MRA (Motorized Receptacle Alignment) improves speed of alignment after filament
change
- X-ray controller, HV generator, HV cable, backing pump, turbo pump, 5L hexid & spares
kit included
Item 3: 0017058 — 225kV Static Target Advanced Filter Kit
- For advanced CT use
- Required to minimize beam hardening artefacts
- Recommended when systems are to be used at high kV
- Filters made from copper, tin, silver, and aluminium
- Thicknesses from 0.1 to 2 mm
Item 4: 0152904 — 225kV Rotating Target 2.0
- Patented continuous rotating target system
- 225 kV target with 450 W continuous target power
- 100% increase in maximum target power (450 W)
- 10 µm spot size < 30 W, 160 µm at 450 W
- Up to 3x higher resolution for the same power as static target
- Up to 3x higher power for the same resolution as static target
- Resulting in significantly faster scan times
- Scanning of dense and difficult to penetrate samples at high resolution made possible by
450W high power and rotating target
Item 5: 0141735 — Multi-metal target for 225 kV reflection target source
- Standard target is single material (W)
- Multi metal target with choices from Mo, W, Ag, Cu
- Target material can be optimized for sample material
Item 6: 0135583 — 225kV Rotating Target Advanced Filter Kit
- For advanced CT use
- Required to minimize beam hardening artefacts
- Recommended when systems are to be used at high kV
- Filters made from copper, tin, and aluminium
- Thicknesses from 0.25 to 1 mm
Item 7: COSL-XRAY — 4343CT Detector Kit
Item 8: 0156441 — Panel Shift CT
- Increases scanning diameter by allowing multiple sets of projections to be captured with
the detector in mirroring offset positions
- Objects much wider than the detector can be captured in a single scan
- Made possible with horizontal flat panel detector movement
- Smaller wide objects benefit from increased magnification and thus resolution
- Automated acquisition and reconstruction of circular CT scans
Item 9: 0156693 — NRTL certification for 40 C Systems
- System must be tested in the final configuration, either at the factory or at the customer
site
Item 10: 0145706 — Extra XT H ST 2x Filament Focus cup for fast filament
replacement
- Spare focus cup to be pre-loaded with a filament offline
- Reduces the filament replacement cycle time to only 1-2 minutes by having a spare
focus cup with a pre-aligned filament ready for a quick focus cup change-over
- Decreases the time the source is at atmospheric pressure during filament change
- Less time at atmospheric pressure allows the source to achieve vacuum faster
- Significantly speeds up filament changes
Item 11: COSL-XRAY
Item 12: 0145289 — Generator Stands, 225kV LES
Item 12.1: Ultimate Reconstruction Workstation G3 including Monitor, Accessories and 3
Year Warranty
- Adds a separate reconstruction workstation to the system to improve throughput and
process speed
- Workstation optimized for collection and reconstruction of CT volumes
- Tested and optimized configuration for use with Nikon Metrology CT reconstruction
software to give world-leading reconstruction times
- 2x Intel Xeon 20-core CPU
- 384 GB RAM
- SSD OS Drive
- 24TB RAID 10 HDD (12TB usable)
- 3.2TB RAID 0 NVMe (3.2TB usable)
- 3x NVIDIA Quadro GPU
- 10 Gigabit Ethernet
- Includes 3 Years RTB Warranty & lifetime Technical Support for computer
- High definition flat screen monitor
Item 12.2: 0103567 — NM CT reconstruction software (64 bit)
- Patented Nikon CT reconstruction software
- Including beam hardening correction and noise reduction
- Reconstruction of region of interest (ROI) scans
- Slice previews of various reconstruction options
Item 13: 0128366 — X.Tend Helical Acquisition Software
- Allows acquisition of X.Tend scans within the Inspect-X software
- Helical motion CT scan that expands the volume of reconstruction in the vertical axis
- Software suite for user-selectable top and bottom vertical travel limits
- No cone beam artefacts
- Increased voxel resolution
- No stitching artefacts
- Faster than several circular scans at same magnification
- Helical performance is system dependent and may vary from system to system
Item 14: 0128227 — X.Tend Helical Reconstruction Software
- Allows reconstruction of X.Tend scans
- Automatic and manual centre of rotation calculation
- Patented reconstruction algorithm for more accurate reconstruction of acquisition
geometry
- Nikon X.Tend reconstruction algorithm does not introduce errors in the way a traditional
FDK algorithm does
Item 15: SVCE-800-115 — Installation - X.Tend
Item 16: SVCE-800-123 — Training - X. Tend
Item 17: PX120d — VGSTUDIO MAX Cast & Mold, Dongle License
- VGSTUDIO MAX Cast & Mold, Dongle License, including single user VGSTUDIO MAX
Dongle License, the add-on modules Coordinate Measurement, Nominal/Actual
Comparison, Wall Thickness Analysis, Porosity/Inclusion Analysis.
Item 18: WX120d — 1Yr update agreement VGSM C&M, Dongle License
- One-year update/service agreement for a VGSTUDIO MAX Cast & Mold, Dongle
License, including single user VGSTUDIO MAX Dongle License and the add-on modules
Coordinate Measurement, Nominal/Actual Comparison, Wall Thickness Analysis,
Porosity/Inclusion Analysis.
Item 19: COSL-XRAY — Boost Transformer
Item 20: COSL-XRAY — 40C Cabinet Installation
Item 21: COSL-XRAY — 40C Training on site (5 days)
Item 22: COSL-XRAY — First year PM visit
Item 23: XRY EXW LES DSG+1R — Annual Service Contract - LES Dual/Single Gun
+Single Rotating Source
- 12 Months of Service Coverage on the LES Dual/Single Gun +Single Rotating Source
Includes (2) Annual Preventative Maintenance, (0) Radiation Certification, Single
Rotating Target, Inspect-X Software Updates, Parts, Labor and Travel Expenses. Items
not covered are Flat Panel Detectors, Target Replacements, CLDA, Window
Replacement, Reconstruction Computers or LES Walk-in-Room Enclosures. The service
provides continued coverage of parts and labor starting (1) day after your system
warranty ends.
Item 24: COSL-XRAY — Shipping estimate (prepay and add)
Item 25: 0153235 — Offset.CT Acquisition and Reconstruction Software
- Acquisition mode to acquire CT scans with the sample centre-of-rotation offset from the
centre
- Allows samples to rotate out of the field-of-view and still be reconstructed fully (with just
over half the sample in view)
- Enables wider samples to be scanned, even those wider than the detector, with a fixed
panel position
- Enables higher geometric magnification of samples, allowing improved image resolution
- Single-Offset CT and Dual-Offset CT both supported
- Optimised reconstruction algorithm to reconstruct Offset.CT scans (both Single- and
Dual- Offset) without stitching artefacts
Item 26: 0153234 — Offset.CT Reconstruction Software
- Optimised reconstruction algorithm to reconstruct Offset.CT scans without stitching
artefacts
- Includes reconstruction of Single-Offset CT datasets and Dual-Offset CT datasets
Item 27: 0153186 — Offset.CT Hardware Kit
- Hardware kit consisting of two cylindrical metal rods required for Offset.CT acquisition
- Rod base uses standard manipulator- and turntable- attachment design, for efficient
placement within systems
- Images of the rods are required for centre-of-rotation calculation during Offset.CT
acquisition
Item 28: SVCE-800-116 — Installation - Offset CT
Item 29: SVCE-800-124 — Training - Offset CT
Item 30: Pixel Push — Pixel Push Software Packag
