2019 DMG MORI NTX 1000, Gantry Loader, Iemca Bar Feeder, <400hrs

ALL SPECIFICATIONS ARE BELIEVED TO BE ACCURATE, SUBJECT TO BUYER VERIFICATION.

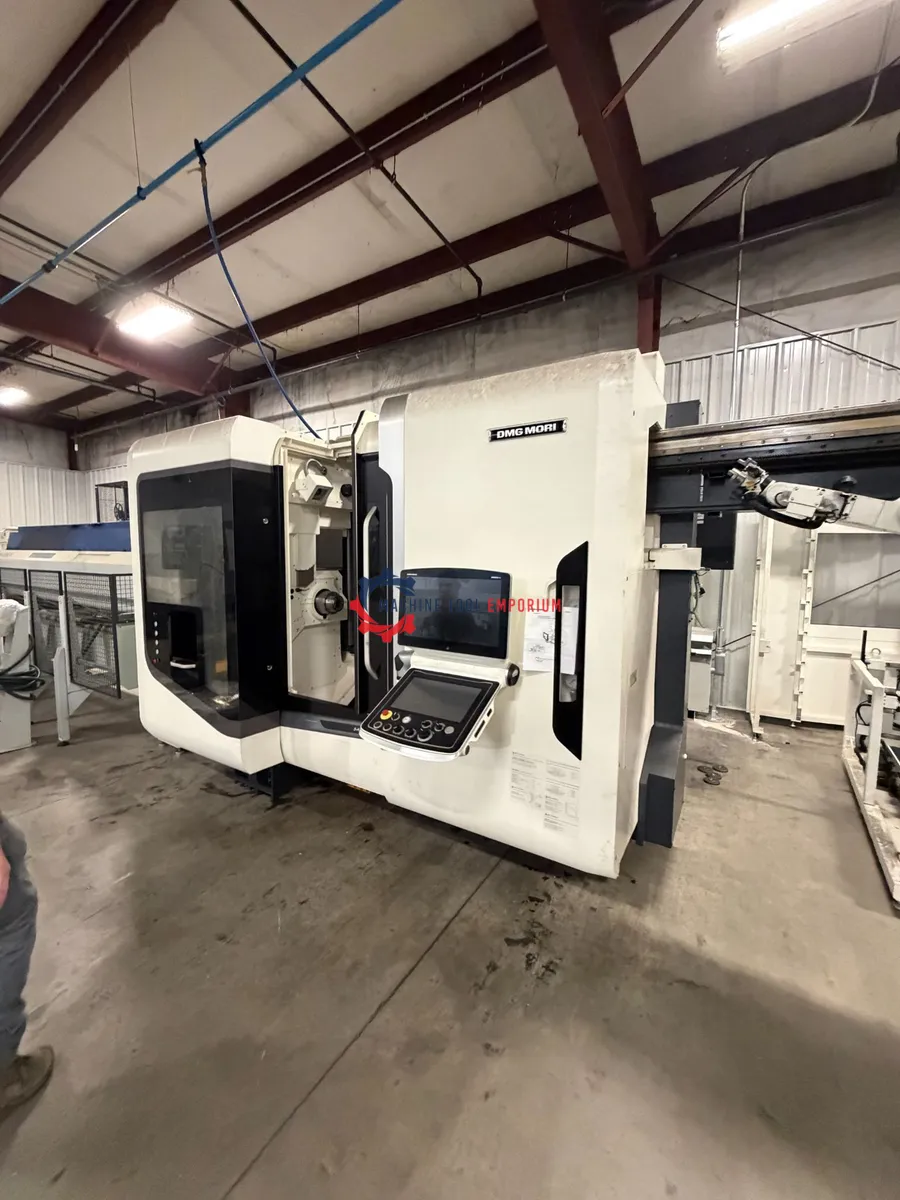

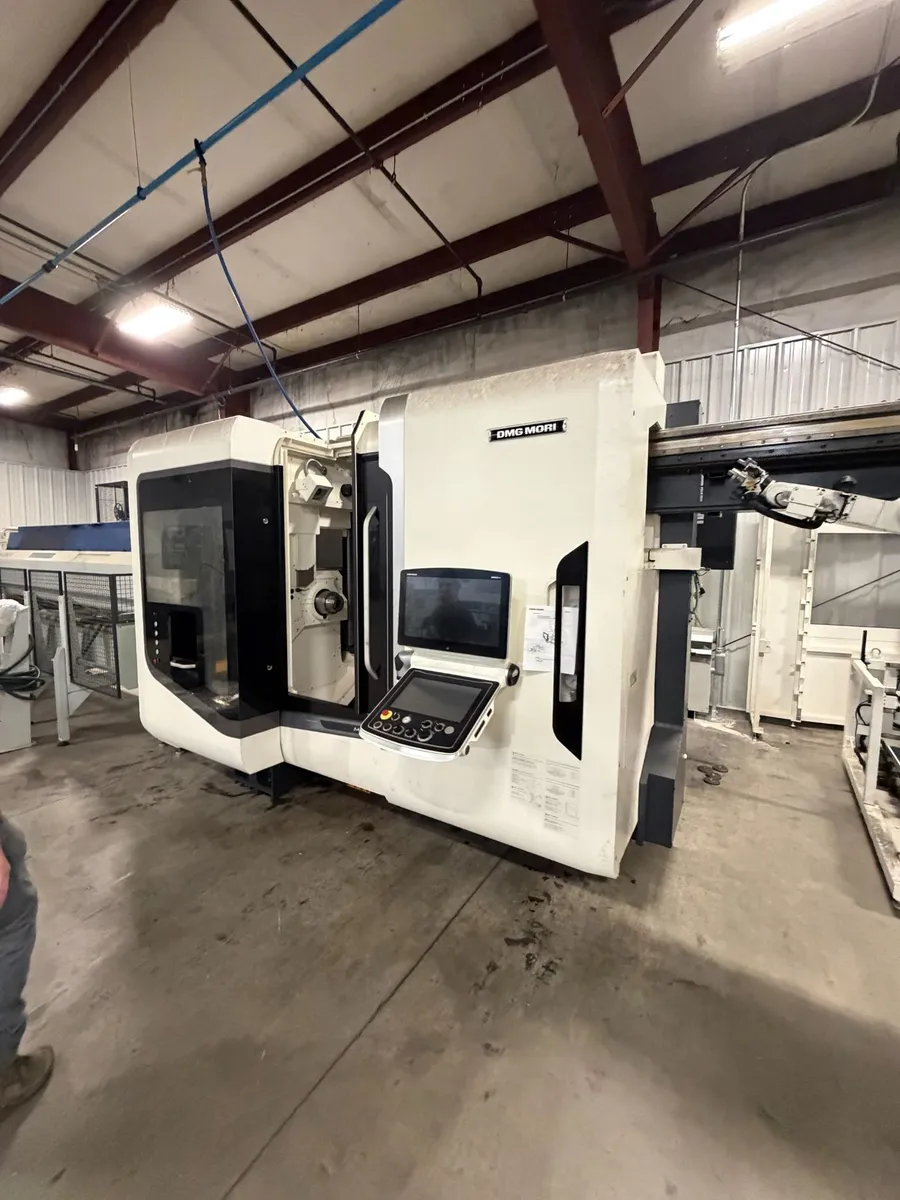

USED LIKE NEW 2019 DMG MORI NTX 1000 2nd Generation 5-Axis Turn-Mill CNC Lathe
Manufacturer: DMG MORI
Model: NTX 1000 (2nd Generation)
Year: 2019
Control: FANUC F31iB5 with CELOS / ERGOline Touch (21.5-inch multi-touch screen + MAPPS)

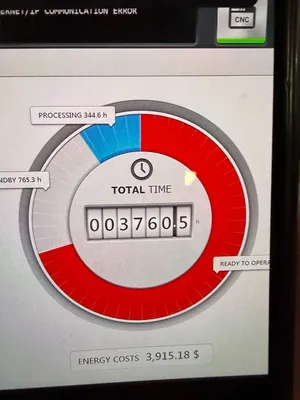

Condition: Like new / excellent – only ~300–399 cutting hours (low usage, well-maintained)
Location: United States (contact Machine Tool Emporium at (502) 802-4008 for exact location, shipping, and pricing)
This is a highly-optioned, production-ready integrated mill-turn center built for complex, high-precision parts in one setup. It features simultaneous 5-axis machining capability, dual spindles, a high-speed tool spindle with 76-tool magazine, lower turret, advanced automation (in-machine traveling robot/gantry loader + IEMCA Master 80F bar feeder), probing, and much more. Includes a fully integrated IEMCA Master 80F bar feeder for unattended high-volume bar production.

Key Specifications

Max workpiece swing diameter: Ø450 mm (17.7")
Max turning diameter: Ø430 mm (16.9") with tool spindle / Ø274 mm (10.7") with turret 2
Max turning length: 800 mm (31.5")
Bar work capacity: Ø65 mm (2.56") with spindle 1 upgrade (fully compatible with feeder’s larger 80 mm capacity)
Chuck size: 8" Kitagawa hollow chucks on both main and counter spindles
Axes: 5+ (X1, Y, Z1, B, C on tool spindle side; X2, Z2, C on turret/counter side)
Travels:
X1 (tool spindle): 455 mm (17.9")
Y (tool spindle): ±105 mm (±4.1")
Z1 (tool spindle + ATC): 800 + 165 mm (31.5" + 6.5")
B-axis (tool spindle, FANUC): ±120° (0.0001° indexing)
X2 / Z2 (turret 2): 160 mm / 730 mm

Spindle 1 (main): 5,000 min⁻¹ max (upgraded through-hole Ø73 mm), 18.5/18.5/15 kW (FANUC spec), torque up to 491 Nm
Spindle 2 (counter): 6,000 min⁻¹, 11/7.5 kW
Tool spindle (upper, compactMASTER): 20,000 min⁻¹, 9/5.5 kW, 49.4 Nm (HSK-A50)
Lower turret (Turret 2): 10-station bolt-tightened, milling capable, 10,000 min⁻¹, 1.5/1.2 kW
Rapid traverse rates: Up to 50 m/min (Z), 40 m/min (X/Y)
Tool magazine: 76 tools (HSK-A50)
Coolant tank: 410 L (108 gal)
Machine weight: ~11,500–12,000 kg (25,300–26,400 lb)
Power requirement: ~30–45 kVA (FANUC spec)
Compressed air: 0.5 MPa / 450–500 L/min

Equipped Options & Upgrades (complete from original DMG MORI quote)
Basic Machine & Control

J-A01457: NTX 1000 2nd Generation basic machine
J-004226 / J-003261: FANUC F31iB5 control with CELOS ERGOline Touch (21.5" multi-touch)

Spindles & Chucks

J-005336: Spindle 1 upgraded – through-spindle hole Ø73 mm, 5,000 min⁻¹, bar capacity Ø65 mm
J-003126: Spindle 2 standard – 11/7.5 kW, 6,000 min⁻¹
J-020625 + J-008872: Kitagawa 8" hollow chuck + hollow cylinder set (Spindle 1)
J-008867 + J-008866: Kitagawa 8" hollow chuck + hollow cylinder set (Spindle 2)

Tool Spindle & Magazine

J-005479: High-speed tool spindle – 20,000 min⁻¹, 9/5.5 kW, 49.4 Nm (compactMASTER, 3-year warranty)
J-005481: HSK-A50 taper
J-005482: Full indexing (standard)

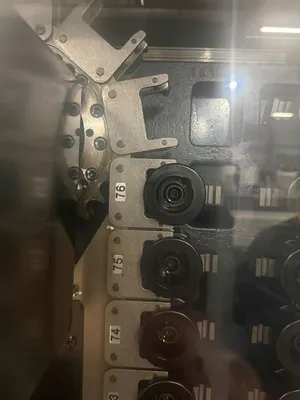

J-004252: 76-tool magazine (HSK-A50)

Turret

J-005491: 10-station bolt-tightened turret (milling specs, 10,000 min⁻¹) for Turret 2

Coolant / Chip Management

J-G00428: Water-soluble coolant
J-008346: Chip conveyor (right discharge, hinge type + drum filter)
J-005069: Mist collector (AFS 1100) with stand
J-004572: Air blow for counter spindle chuck

Measuring / Monitoring

J-004575: In-machine workpiece measuring system – Renishaw RMP600 radio transmission touch sensor
J-004278: Automatic in-machine tool presetter (in-out type) for tool spindle

Automation

J-004287: Automatic door
J-015384: EtherNet/IP interface
J-008878: Bar feeder interface (LNS – multiple)

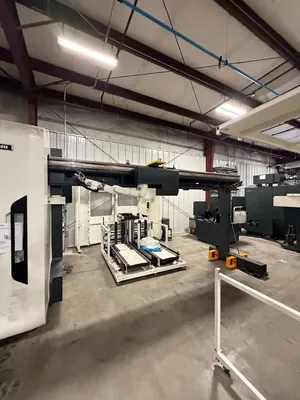

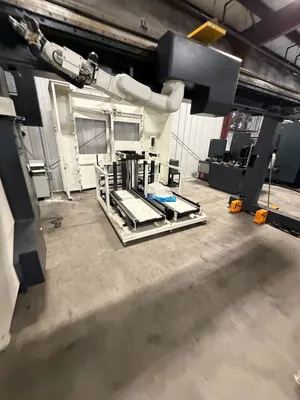

J-022323: In-machine traveling robot / gantry loader workpiece handling system (Fanuc LR Mate 200iD 7L, 7 kg capacity, rail 1.8 m)
J-007273: Robot traveling axis extension – 1.5 m

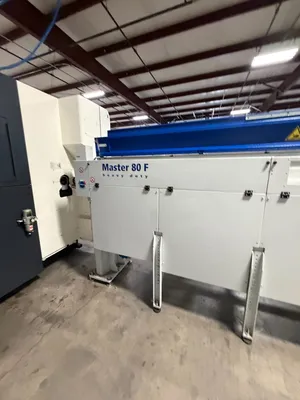

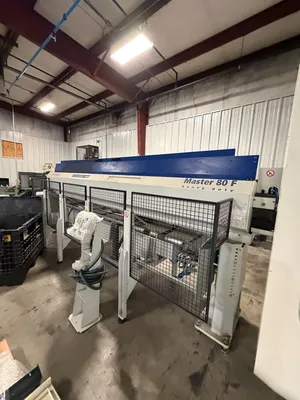

IEMCA Master 80F Automatic Bar Feeder (fully integrated via machine interface):
Bar diameter capacity: Ø8 – 80 mm (round); also handles hex and square profiles
Bar length capacity: 1,500 – 4,200 mm (typical configuration; exact length per installed version)
Hydrodynamic oil-filled guide channel for vibration-free high-RPM operation
Large magazine capacity with quick bar changeover (~30–40 seconds)
Remnant ejection, axial shifting for easy access/maintenance, and full synchronization with the machine’s dual spindles and gantry loader for true lights-out production

General & Technology Options

J-002210: Multi dry filter
J-005396: In-machine HD Network Camera (Spindle 1)
J-001246: Weekly timer
J-015367: 10 external M-codes
J-003686: Manual pulse generator (separate type)
J-007826: Gear skiving technology cycle
J-015575: 3D quickSET (kinematic accuracy tool kit)
J-015572: MPC (Machine Protection Control)
J-008016: Synchronous tapping (turning spindle)
J-008105: Programming resolution multiplied by 1/10 (0.0001 mm)
J-007793: Text engraving function
J-008021: Program restart
J-008244: Additional optional block skip (soft key 2-9)
J-008264: Tool offsets – 480 sets total
J-G00618: X-axis JIS/ISO compliant direction

Documentation & Services

J-015663: Additional machine manuals & parts list (1 set)
J-000080: English screen text language
J-004769: DMG MORI Messenger
J-004965: 3D machine model data
Sales company services: Standard equipment, electrical safety inspection, freight to customer’s door

Standard Equipment (included in base + options)
Spindle cooling, tailstock (live center MT4), full cover, door interlock, low pressure detection switches, through-spindle coolant (tool spindle), manual presetter (base), etc.
3D interference checking, nano interpolation, AI contour control, tilted working plane, tool center point control, and many other high-speed/5-axis functions.
Additional Details from Listing

Automation: In-machine traveling robot/gantry loader (Fanuc LR Mate 200iD 7L) + IEMCA Master 80F bar feeder (premium hydrodynamic long-bar feeder, fully interfaced and synchronized for unattended operation).
Tailstock: Live center capable.
Ideal for: High-mix, low-volume or medium-volume complex parts (medical, aerospace, automotive, defense, etc.) requiring turning, milling, drilling, gear skiving, and 5-axis contouring in one setup — now with full bar-fed automation for maximum productivity.

This machine is exceptionally well-equipped for a used NTX 1000 – far above a base model. Low hours, full automation package (robot + IEMCA Master 80F bar feeder), probing, large tool capacity, and advanced control make it ready for immediate production.
Contact Machine Tool Emporium for additional photos, video, power-on demonstration, or to arrange inspection/shipping. All specifications are based on the original DMG MORI quotation, manufacturer literature, and installed peripherals.
ALL SPECIFICATIONS ARE BELIEVED TO BE ACCURATE, SUBJECT TO BUYER VERIFICATION.
