Used 2019 MICRO DYNAMICS TERA 50V | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available
$89,999.00 USD
Or as low as $1,529.98 USD/month over 72 months
Or as low as $1,529.98 USD/month over 72 months

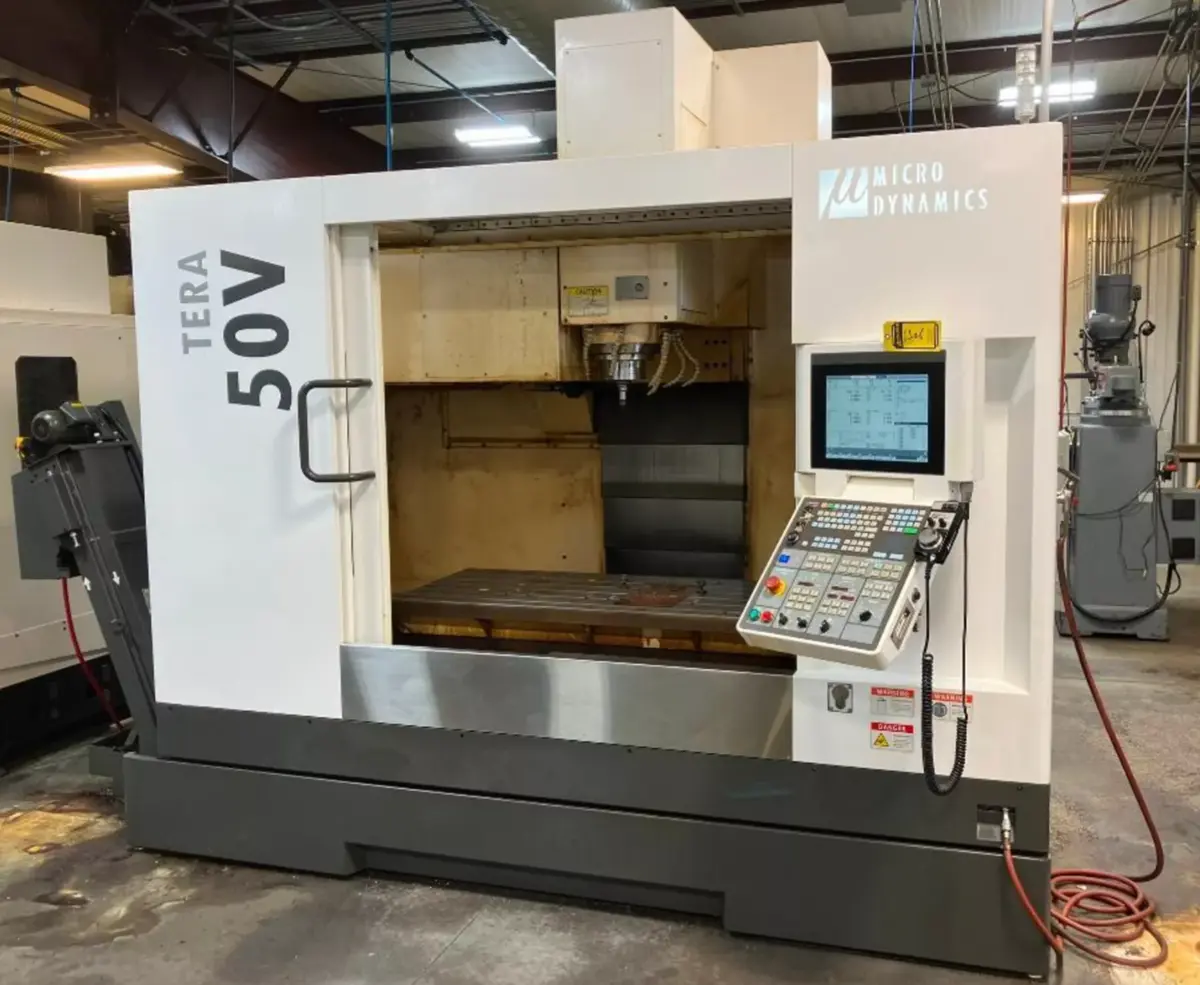

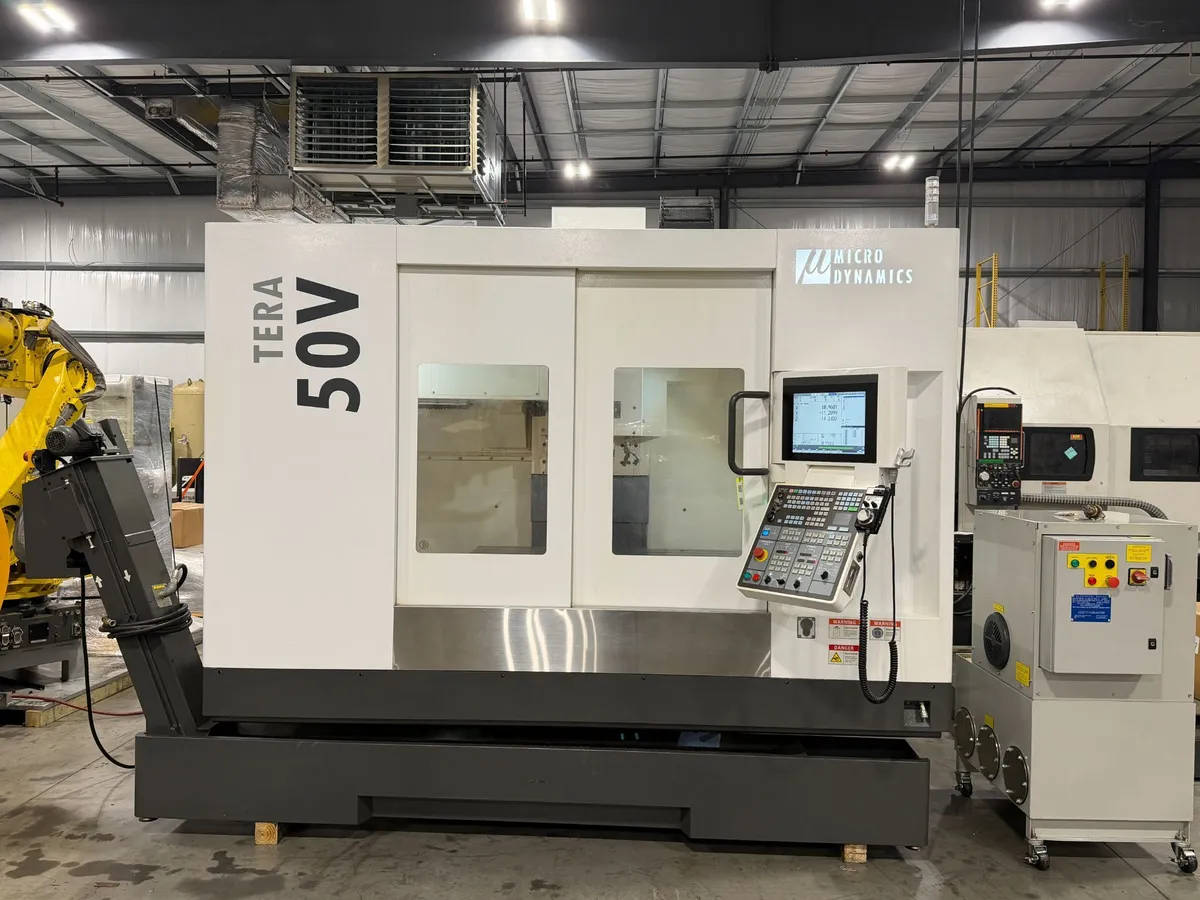

MicroDynamics Tera 50V CNC Vertical Machining Center Complete w/ 50" X, 25" Y, 25" Z Axis Travels, Cat 40 Taper, Spindle, Chip Blaster, Chip Conveyor, MircoDynamics CNC Control, S/N 210-00014 (Mfg 2019) new certified rebuilt spindle, 50-15,000 rpm, rigid tap to 6,000 rpm, Rapid X/Y 2,047 ipm, Z 1,889 ipm, Cutting 0-787 ipm

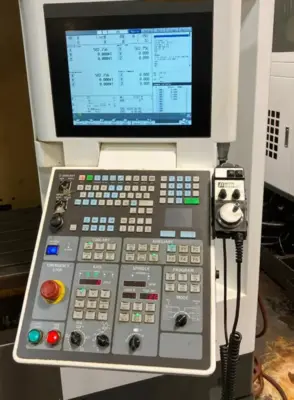

Powerful Mitsubishi M830 windows based CNC Control
Heavily ribbed, FC300 Cast Iron Structure, Meehanite processed, FEA Analyzed
High Torque Integral Spindle Motor from ATE is rated at 41 HP and delivers 104 Ft-Lbs of torque
Advance 15,000 RPM Spindle couple with the Integral Motor for faster machining speeds
1.5 Sec Spindle Acceleration to 12,000 rpm for less Idle Time
Spindle Oil Cooler
DYPEC® Thermal Compensation system to maintain accuracy from the effects of thermal growth
Large Size 30mm (X) and 35mm (Y, Z) Cross Roller Linear Rails for extra stiffening
Large Diameter Ballscrews 32mm X, 40mm Y and Z axis
High Horsepower Servos generating 3,942 lbs Thrust X, Y and 7,548 Lbs in Z for Higher Metal Removal Rates
High rapid rates of 2,047 X, Y and 1,889 Z rival most other Vertical Machining Centers
SSS Gen 4 High Speed Super Smooth Surface for Mold and Die
2,700 Block Look Ahead
15” Touchscreen display with built in “Operator Convenience” HMI
DYCON® on board simple conversational programming
Floor Space 141” (including chip Conveyor) x 97” depth
