Used 2021 DMG MORI DMU 50 5-AXIS | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available
Description:

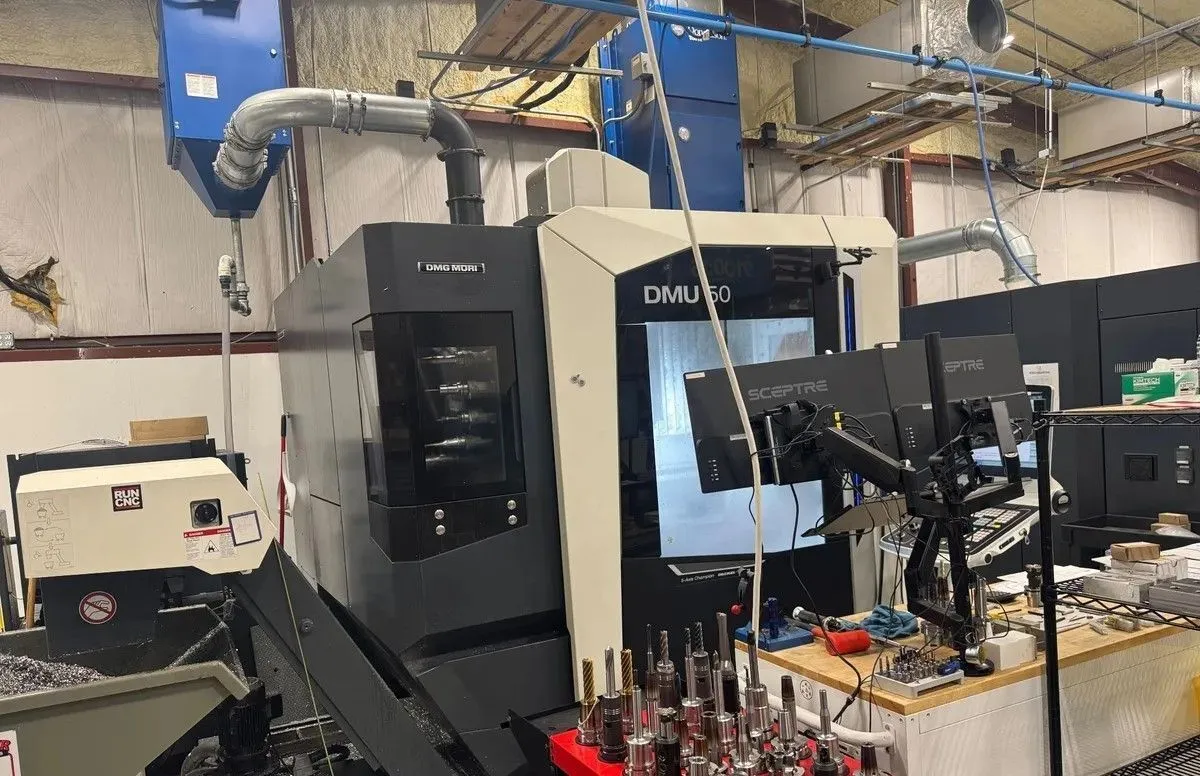

2021 DMG MORI DMU 50 5-Axis Vertical Machining Center available. Perfect for precision and versatility needs, this used model offers advanced 5-axis capabilities to enhance productivity.
Equipped With:
CHIP CONVEYER
3D QUICKSET
SWARF CONVEYER
40 BAR INTERNAL COOLANT SUPPLY
LASER TOOL MEASURING
INFARED MEASURING PROBE PP60 OPTICAL
Specifications:
SPINDLE SPEED: 20000 RPM
TOOL CAPACITY (ATC): 32
MAIN SPINDLE MOTOR: 35 HP
SPINDLE TAPER: HSK 63
HI PRESSURE COOLANT SYSTEM: 580 PSI
B-AXIS (TABLE SWIVEL) −35 / +110 DEGREES
RAPID TRAVERSE RATES: X AXIS Y AXIS Z AXIS 1654 IPM/ 1654 IPM/ 1654 IPM

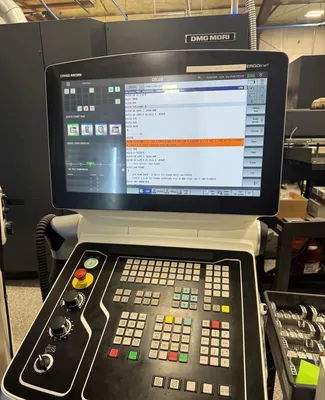

CONTROL CNC: (CELOS WITH SIEMENS 840D SLIMLINE CNC CONTROL)
WEIGHT: 16,500 LBS.
SPINDLE SPEED: 20000 RPM
TOOL CAPACITY (ATC): 32
MAIN SPINDLE MOTOR: 35 HP
SPINDLE TAPER: HSK 63
HI PRESSURE COOLANT SYSTEM: 580 PSI
B-AXIS (TABLE SWIVEL) −35 / +110 DEGREES
RAPID TRAVERSE RATES: X AXIS Y AXIS Z AXIS 1654 IPM/ 1654 IPM/ 1654 IPM
CONTROL CNC: (CELOS WITH SIEMENS 840D SLIMLINE CNC CONTROL)
WEIGHT: 16,500 LBS.
