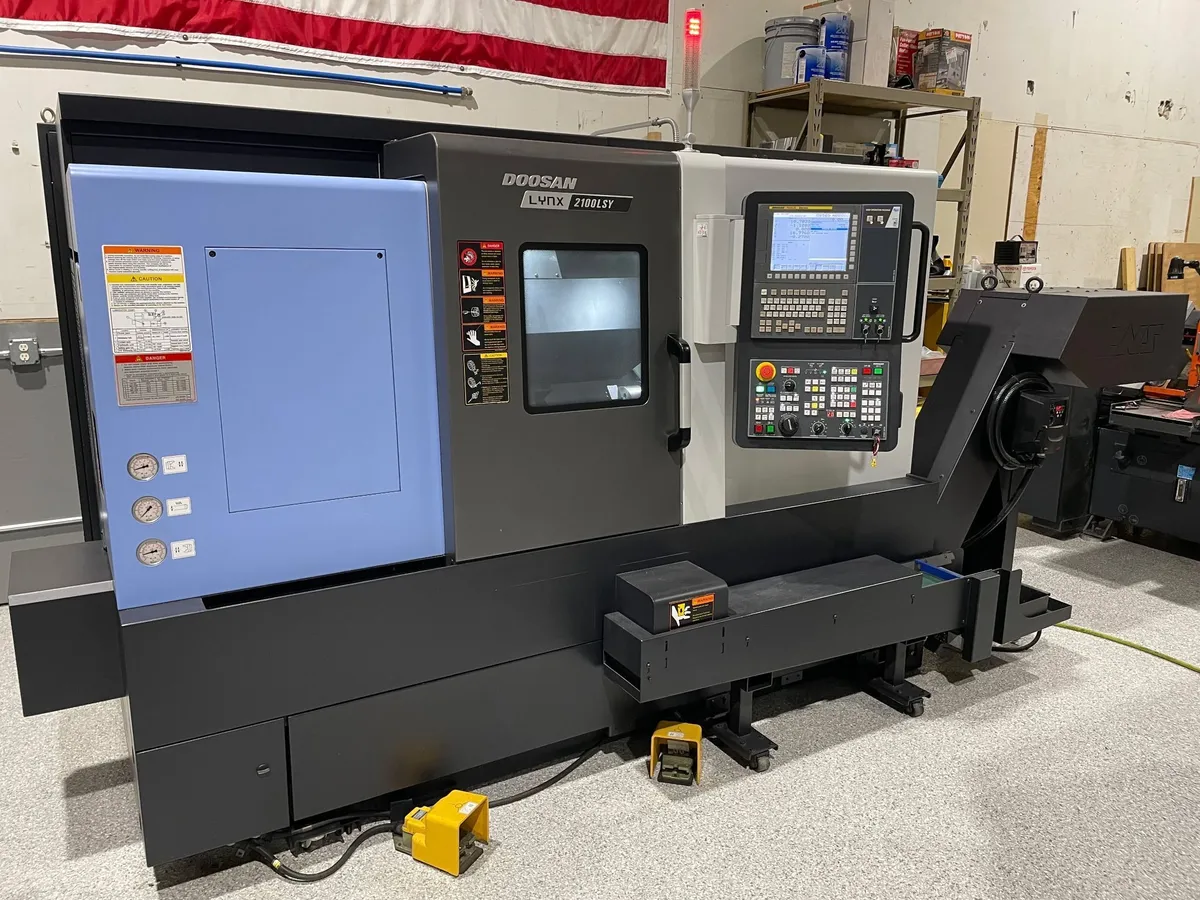

2020 Doosan Lynx 2100LSYB CNC Turning Center
Have one to sell?
ConditionUsed
1 available

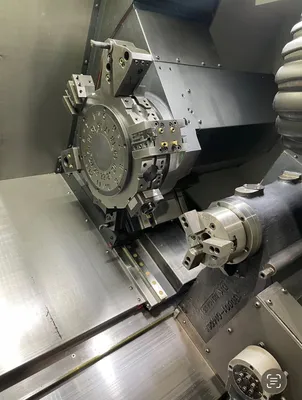

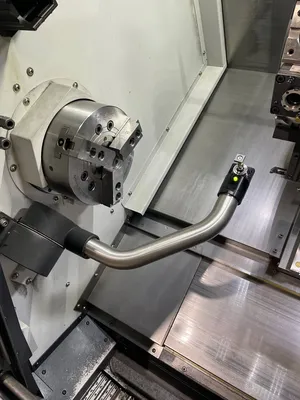

2020 Doosan Lynx 2100LSYB CNC turning center with Fanuc control, Y-axis, sub-spindle, live tooling, 12-station turret, and chip conveyor. Photo-documented hours show 2,777 power-on hours, 1,022 run hours, and 625 cutting hours. Equipped as pictured. Specifications are believed to be accurate and are subject to buyer verification.
2020 Doosan Lynx 2100LSYB CNC Turning Center
Control: Fanuc CNC
Chuck Size: 8 in main spindle; 5 in sub-spindle
Bar Capacity: 2.6 in / 65 mm
Max Turning Diameter: 11.8 in
Max Turning Length: 20.1 in
Swing: 23.6 in
X-Axis Travel: 8.1 in
Y-Axis Travel: +/- 2.1 in
Z-Axis Travel: 22.0 in
Main Spindle Speed: 4,500 RPM
Main Spindle Motor: 20 HP
Sub-Spindle Speed: 6,000 RPM
Live Tooling Speed: 6,000 RPM
Turret: 12-station BMT turret
Machine Dimensions: approx. 113.4 in x 67.5 in x 76 in
Machine Weight: approx. 9,260 lb

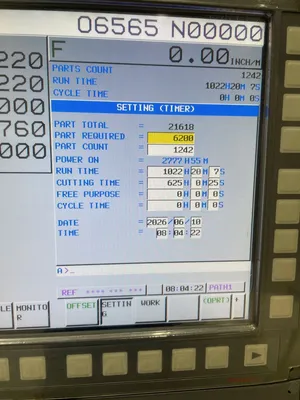

Photo-documented hours:
Power On: 2,777 H 55 M
Run Time: 1,022 H 20 M
Cutting Time: 625 H 0 M 25 S
