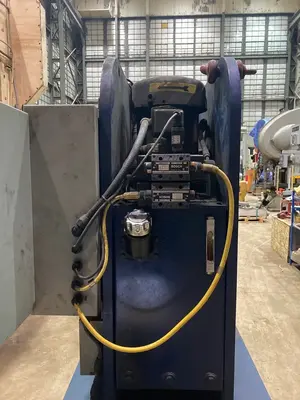

1998 MAGNUM HBM-15-A 17.6 Ton C-Frame Hydraulic Press
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD
Or as low as $212.50 USD/month over 72 months
Or as low as $212.50 USD/month over 72 months

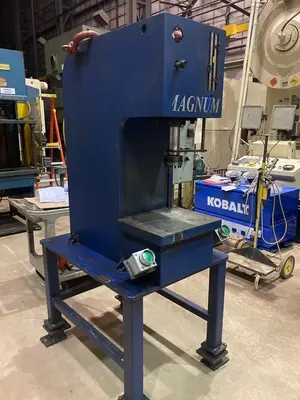

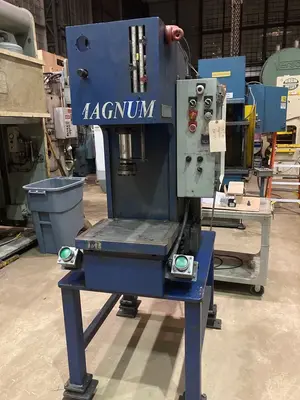

Used 17.6 Ton Magnum C-Frame Hydraulic Press, model HBM-15-A, from 1998. Features an 18 in. L-R x 14 in. F-B bed, 8 in. stroke, 16 in. maximum daylight, and 2500 PSI rated pressure. Powered by a 7.5 HP motor. Approximate dimensions are 4 ft. L-R x 4 ft. F-B x 6 ft. high; approximate weight is 3,250 lb.

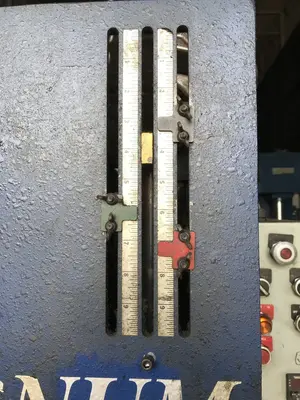

Stroke Range: 0.5 in. - 8 in.
Rod Diameter: 2.50 in.

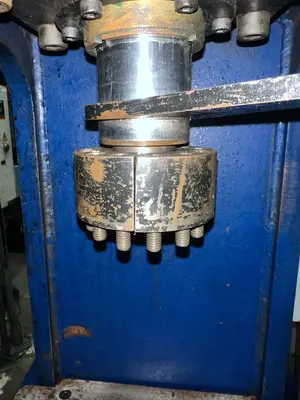

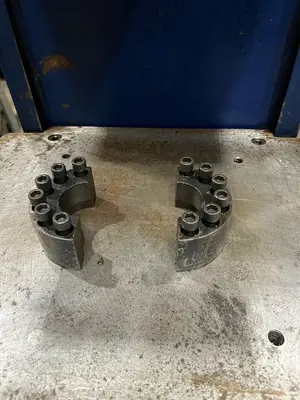

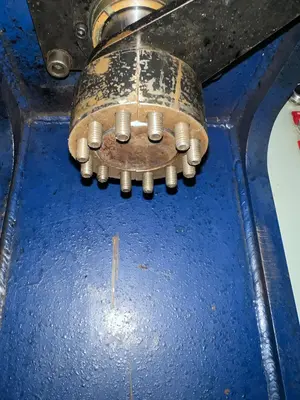

Cylinder Rod End: SAFE Coupler

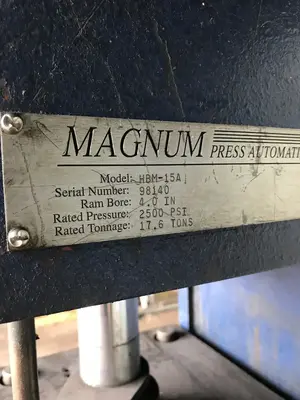

Rated Pressure: 2500 PSI (3000 PSI Maximum)
Rated Tonnage: 17.6 Ton
Minimum Shut Height: 8 in.
Maximum Daylight: 16 in.
Throat: 8 in.
Bed Size: 18 in. L-R x 14 in. F-B
Reservoir Capacity: 20 Gallons (Approximately)
Speeds: 220 IPM Rapid Advance / 90 IPM Pressing / 140 IPM Return
Electrical Supplied Wired Voltage: 230 VAC Poly Phase
Motor Voltages: 200-230/460

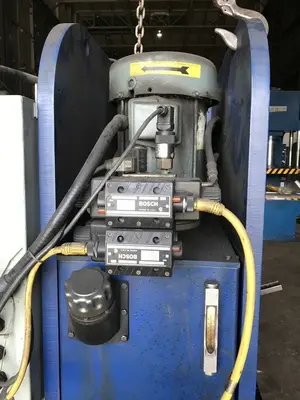

Motor: 7.5 HP
Approximate Dimensions: 4 ft. L-R x 4 ft. F-B x 6 ft. High
Approximate Weight: 3,250 lb.
