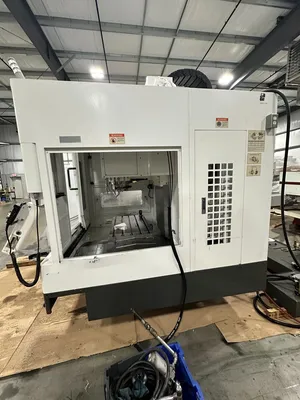

2018 Micro Dynamics Mega 30V Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
$59,900.00 USD
Or as low as $1,018.30 USD/month over 72 months
Or as low as $1,018.30 USD/month over 72 months

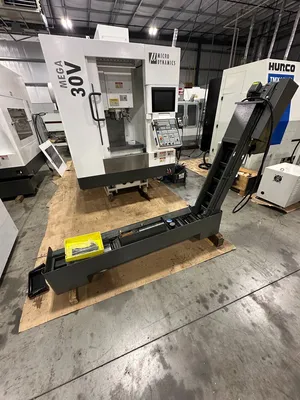

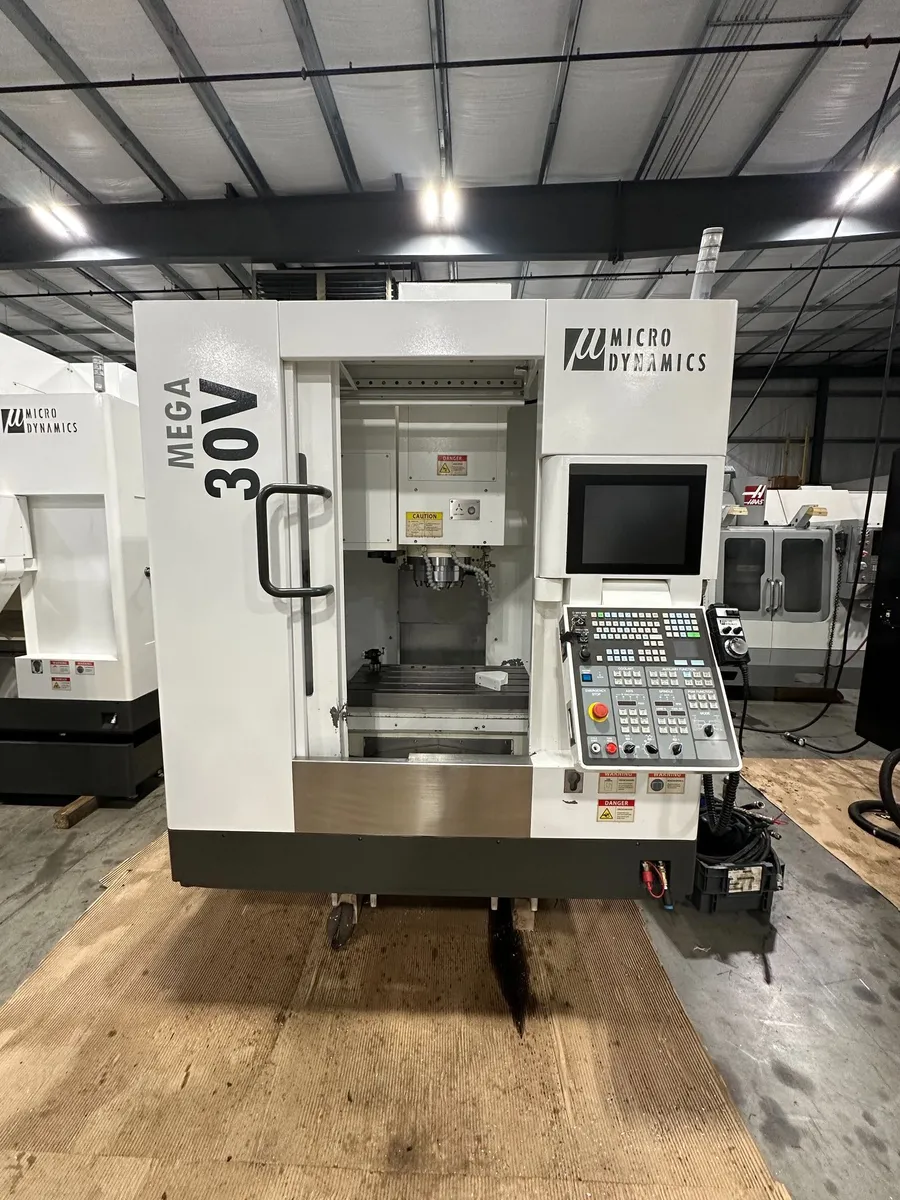

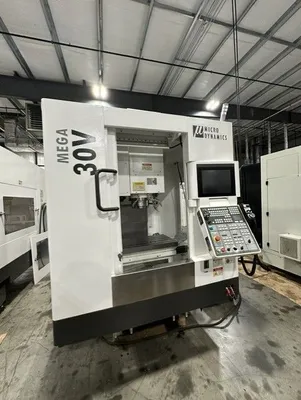

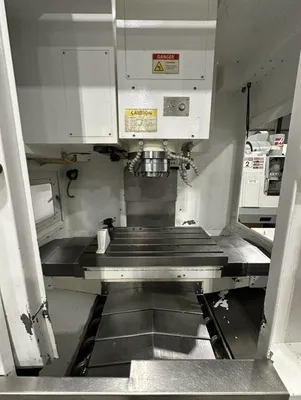

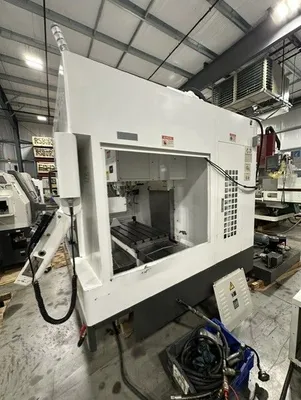

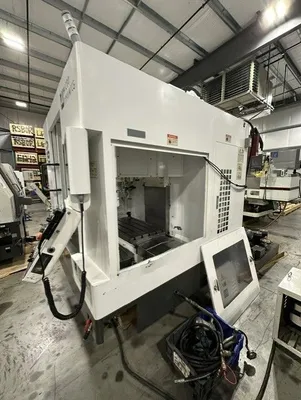

2018 Micro Dynamics Mega 30V 3-axis vertical machining center with 30 in. X-axis, 20 in. Y-axis, and 20 in. Z-axis travels; 33.9 in. x 19.7 in. table; 15,000 RPM built-in 40-taper spindle; 30-tool automatic tool changer; and Mitsubishi CNC control with Micro Dynamics HMI. Includes coolant system, twin chip augers, and scraper-type chip conveyor as shown. 220V, 3-phase power. Nameplate weight: 4,920 kg (approximately 10,847 lb). Available for inspection at Machine Tool Emporium in LaGrange, Kentucky.
TRAVELS
X Axis: 30 in.
Y Axis: 20 in.
Z Axis: 20 in.
Spindle Nose to Table: 3.9-24 in.
TABLE

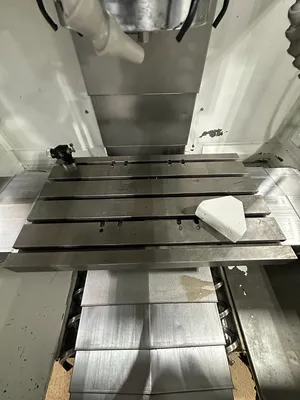

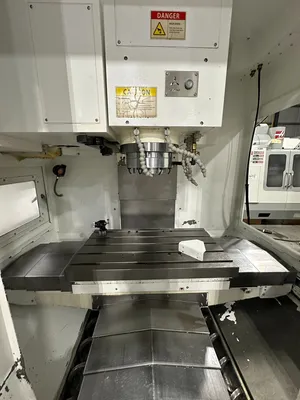

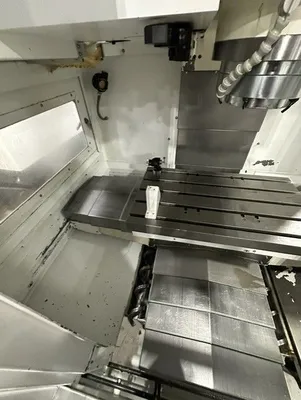

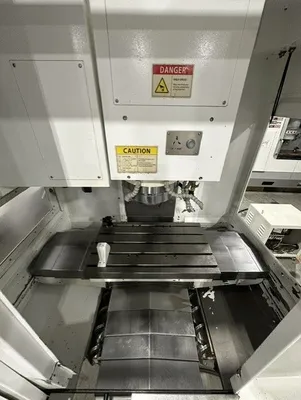

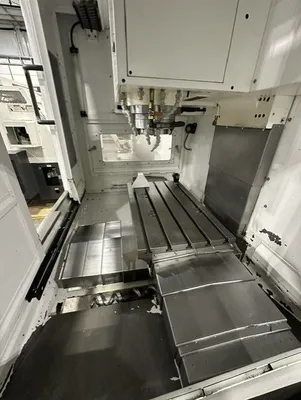

Table Size: 33.9 x 19.7 in.
Maximum Table Load: 1,764 lb

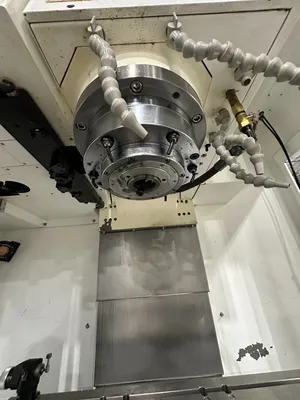

SPINDLE
Taper: 40 Taper
Speed: 50-15,000 RPM
Maximum Power: 41 HP
AUTOMATIC TOOL CHANGER

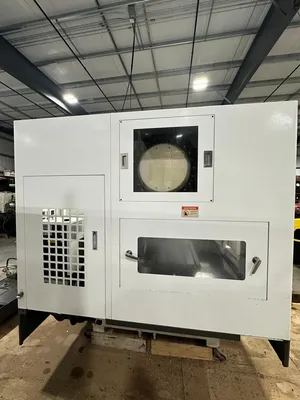

Capacity: 30 Tools
Tool Selection: Bi-Directional / Random
FEEDRATES
Rapid Traverse X/Y: 2,047 IPM
Rapid Traverse Z: 1,889 IPM
CONTROL

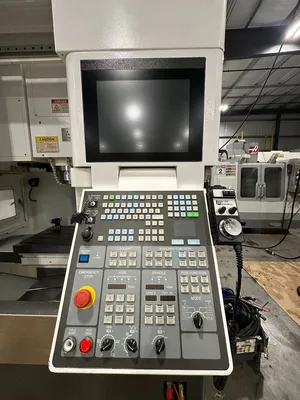

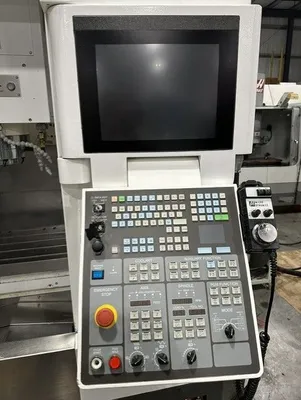

Mitsubishi CNC with Micro Dynamics HMI
GENERAL
Machine Footprint: 94.1 in. W x 88.4 in. D
Machine Height: 111.1 in.
Nameplate Weight: 4,920 kg / approx. 10,847 lb

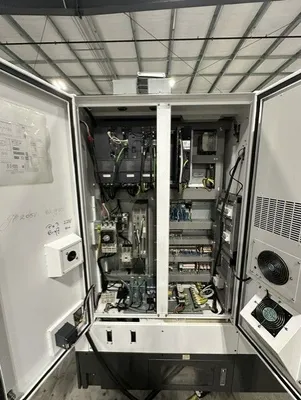

Electrical: 220V, 3-Phase, 60 Hz, 30 kVA
INCLUDED EQUIPMENT

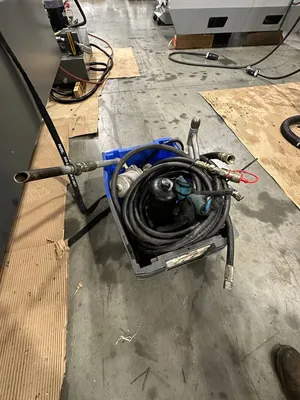

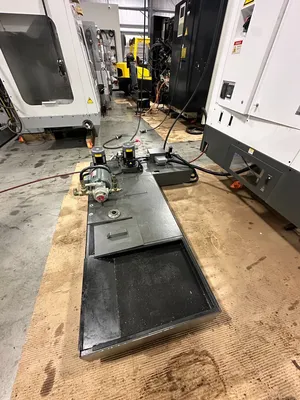

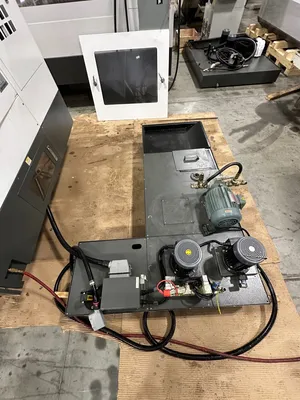

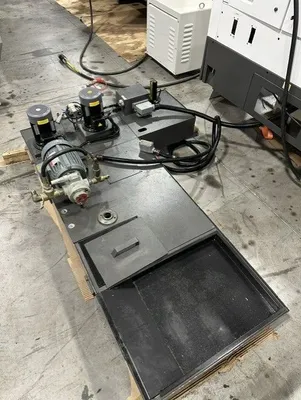

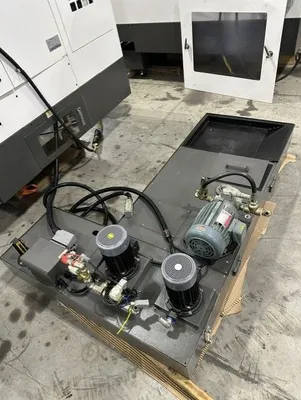

Coolant system with base wash

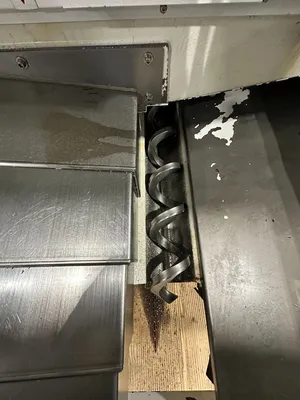

Twin chip augers

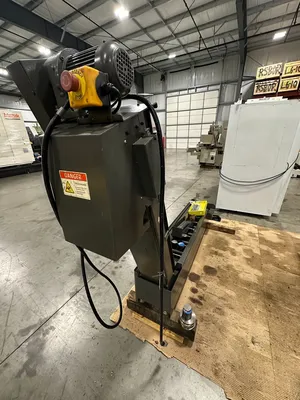

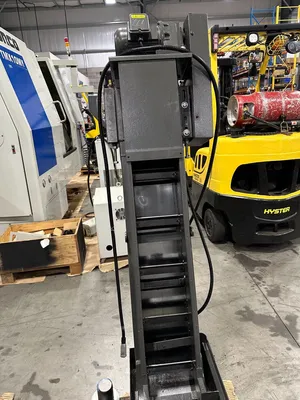

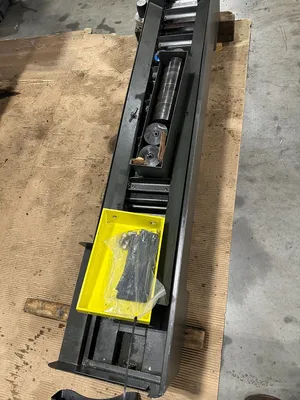

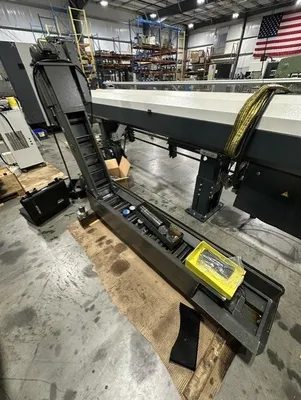

Scraper-type chip conveyor
