Used 2011 HURCO TMX10MY | CNC Lathes

Description

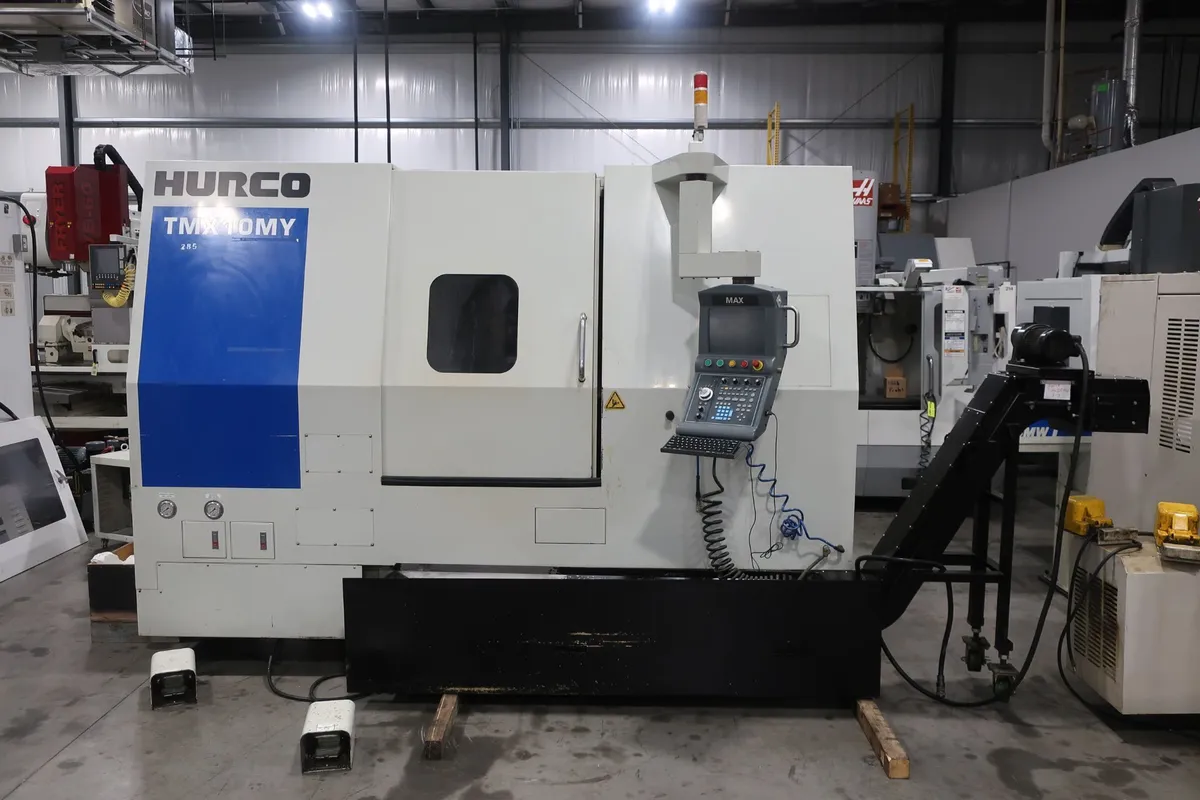

Hurco TMX10MY CNC turning center equipped with Hurco MAX/WinMax-style control, live tooling, Y-axis capability, 10" chuck class, 12-station turret, chip conveyor, coolant/chiller unit, and related accessories. This machine is suited for CNC turning, drilling, tapping, milling, and complex job-shop or production machining applications. The TMX10MY offers more capability than a standard 2-axis lathe thanks to its live tooling and Y-axis configuration.

Type: CNC Lathes / CNC Turning Centers
Manufacturer: Hurco
Model: TMX10MY
Control: Hurco MAX / WinMax Style CNC Control
Condition: Used
Status: For Sale
Location: La Grange, KY / Louisville, KY area
Serial Number: TY10-11002121ACSH
Country of Manufacture: Taiwan
Machine Style: Slant-bed CNC turning center with live tooling and Y-axis
Sub-Spindle: Not shown / not confirmed
Live Tooling: Yes
Y-Axis: Yes
Chip Conveyor: Included
Coolant / Chiller Unit: Included
Hydraulic Unit: Included
Transformer / Electrical Cabinet: Included
Tailstock

Main Machine Specifications
Spec Value
Chuck Size 10.24 in / 260 mm
Max Bar Capacity 3.07 in / 78 mm
Swing Over Bed 22.05 in / 560 mm
Swing Over Cross Slide 22.05 in / 560 mm
Max Turning Diameter 12.40 in / 315 mm
Max Turning Length 24.68 in / 627 mm
Distance Between Centers 33.60 in / 854 mm
X-Axis Travel 12.00 in / 304.8 mm
Y-Axis Travel 2.17 in / 55 mm
Z-Axis Travel 26.38 in / 670 mm
W-Axis Travel 29.13 in / 740 mm
Main Spindle Speed 3,500 RPM
Main Spindle Power 37.6 HP / 28 kW
Main Spindle Torque 197 ft-lb / 267.4 Nm
Tool Capacity 12 Stations
Turret Tool Shank Size 1.00 in x 1.00 in / 25 mm x 25 mm
Max Boring Bar Diameter 1.57 in / 40 mm
Live Tooling Speed 5,000 RPM
Live Tooling Power 8.5 HP / 6.3 kW
Live Tooling Torque 20.4 ft-lb / 27.6 Nm
X-Axis Rapid Traverse 945 IPM / 24 m/min
Y-Axis Rapid Traverse 472 IPM / 12 m/min
Z-Axis Rapid Traverse 1,181 IPM / 30 m/min
W-Axis Rapid Traverse 1,181 IPM / 30 m/min
Machine Weight Approx. 15,984 lb / 7,250 kg
